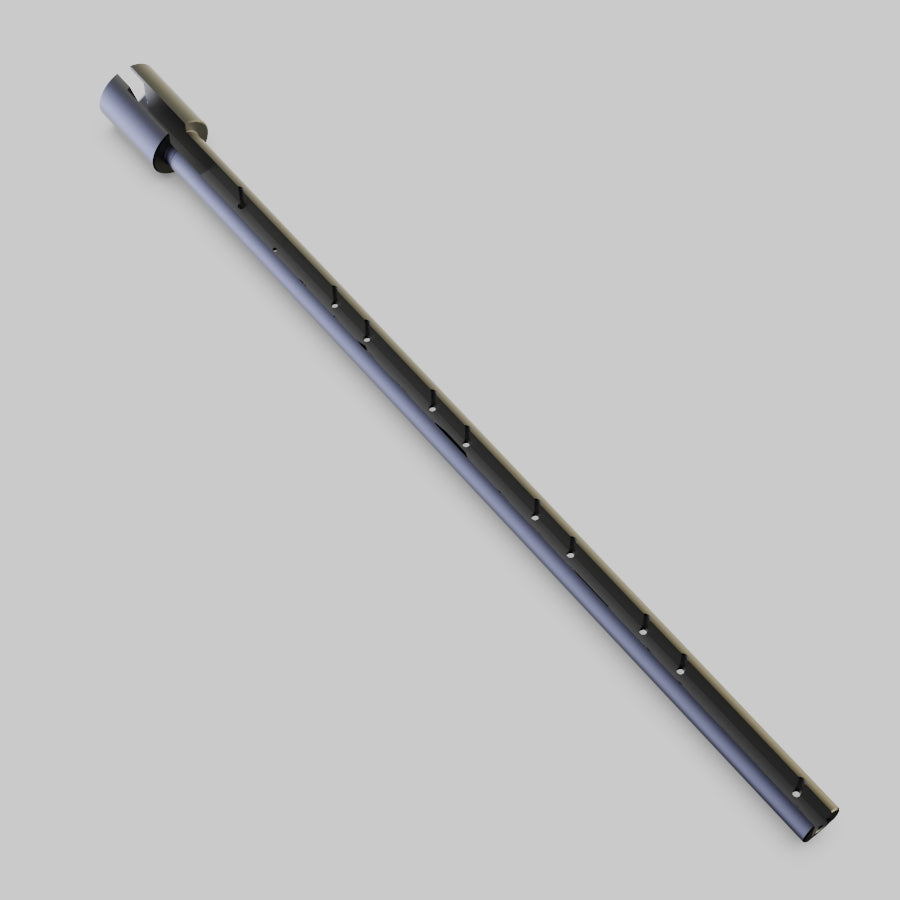

P28 5-STONE MANDREL
P28 5-STONE MANDREL
Elevate your honing precision with Sunnen 5GP28 Tooling, engineered for high-performance applications requiring accuracy, repeatability, and durability. This tooling ensures optimal abrasive alignment and efficient material removal, delivering superior surface finishes and extended tool life. Ideal for demanding industrial environments, the 5GP28 offers the reliability and performance professionals expect from Sunnen.
Specs
Specs
| Abr length (in) | 16.402 |
|---|---|
| Abr length (mm) | 416.6108 |
| Max diameter (in) | 1.5 |
| Max diameter (mm) | 38.1 |
| Min diameter (in) | 1.355 |
| Min diameter (mm) | 34.417 |
| Reach length (in) | 19.15625 |
| Reach length (mm) | 486.56875 |
| Shank length (in) | 2.75 |
| Shank length (mm) | 69.85 |
| Shoe type | REPLACEABLE |
| Stone size | P28 |
| Tool series | P-SERIES |
