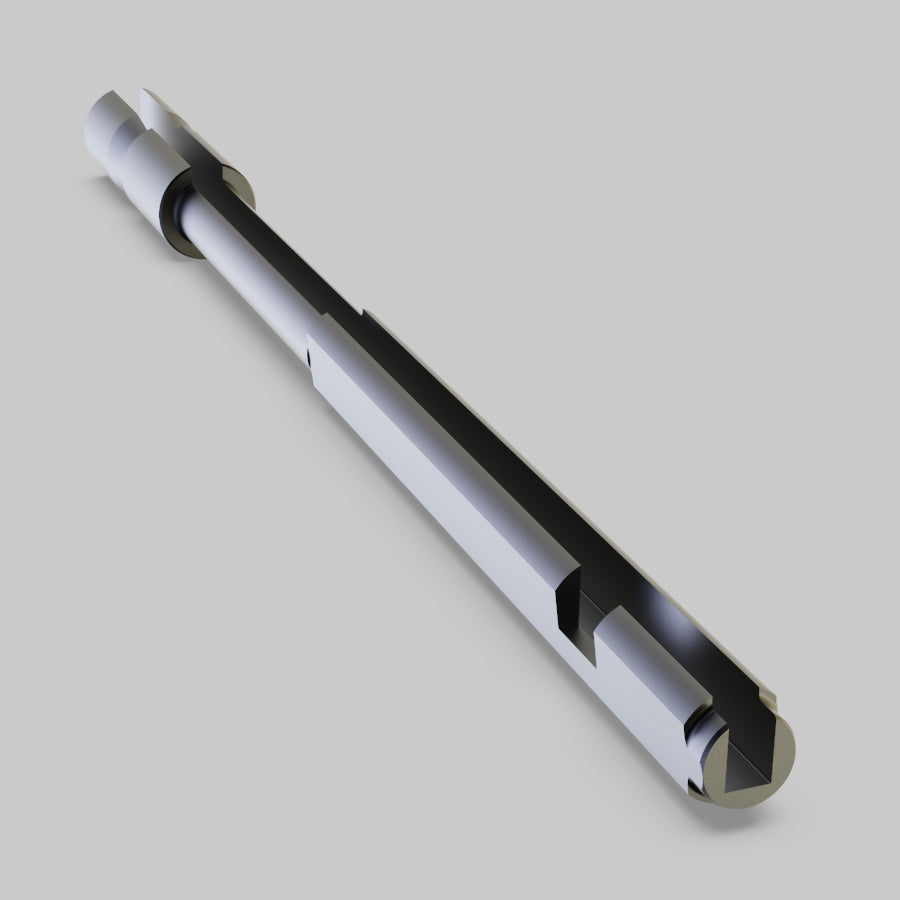

BL16 BRONZE MANDREL
BL16 BRONZE MANDREL
The Sunnen BL16 Mandrel is engineered to provide exceptional accuracy and surface finish for mid-sized bore honing applications. Designed for durability and consistent performance, it ensures tight tolerances and superior roundness across a variety of materials. Perfectly compatible with Sunnen honing systems, the BL16 delivers reliable, repeatable results in both production and repair environments.
Specs
Specs
| Abr length (in) | 4.5 |
|---|---|
| Abr length (mm) | 114.3 |
| Max diameter (in) | 0.619 |
| Max diameter (mm) | 15.7226 |
| Min diameter (in) | 0.588 |
| Min diameter (mm) | 14.9352 |
| Reach length (in) | 6.625 |
| Reach length (mm) | 168.275 |
| Shank length (in) | 2.125 |
| Shank length (mm) | 168.275 |
| Shoe type | BRONZE |
| Stone size | L16 |
| Sub-family | BL16 |
| Tool series | L Series |
Sunnen Service Team
Your Sunnen Technical Specialist will work with you to determine the best solution for your needs – it’s all part of the added value you get with Sunnen. Plus, our worldwide sales and service team provides comprehensive support for the installation and operation of every system we make. Whatever your need, we have the expertise and product range to create the right solution for you and the dedication to support you for the long run.
