BL4 HARD STEEL MANDREL
BL4 HARD STEEL MANDREL

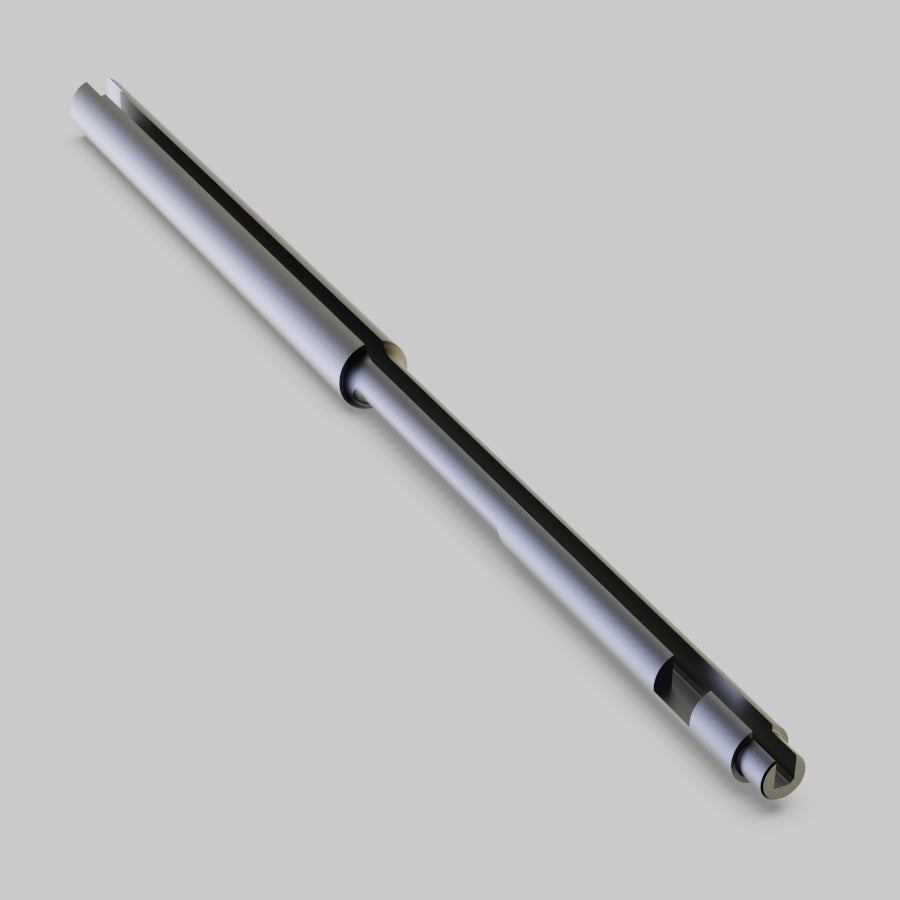

The Sunnen BL4 Mandrel offers dependable performance for honing small to medium-sized bores with exceptional accuracy and surface finish. Engineered for durability and ease of use, it delivers consistent, repeatable results across a variety of materials and applications. Fully compatible with Sunnen honing systems, the BL4 is the trusted choice for shops demanding precision and efficiency.
Specs
Specs
| Abr length (in) | 1 |
|---|---|
| Abr length (mm) | 25.4 |
| Max diameter (in) | 0.15 |
| Max diameter (mm) | 3.81 |
| Min diameter (in) | 0.145 |
| Min diameter (mm) | 3.683 |
| Reach length (in) | 1.875 |
| Reach length (mm) | 47.625 |
| Shank length (in) | 0.875 |
| Shank length (mm) | 22.225 |
| Shoe type | HARD STEEL |
| Stone size | L4 |
| Sub-family | BL4 |
| Tool series | L Series |
