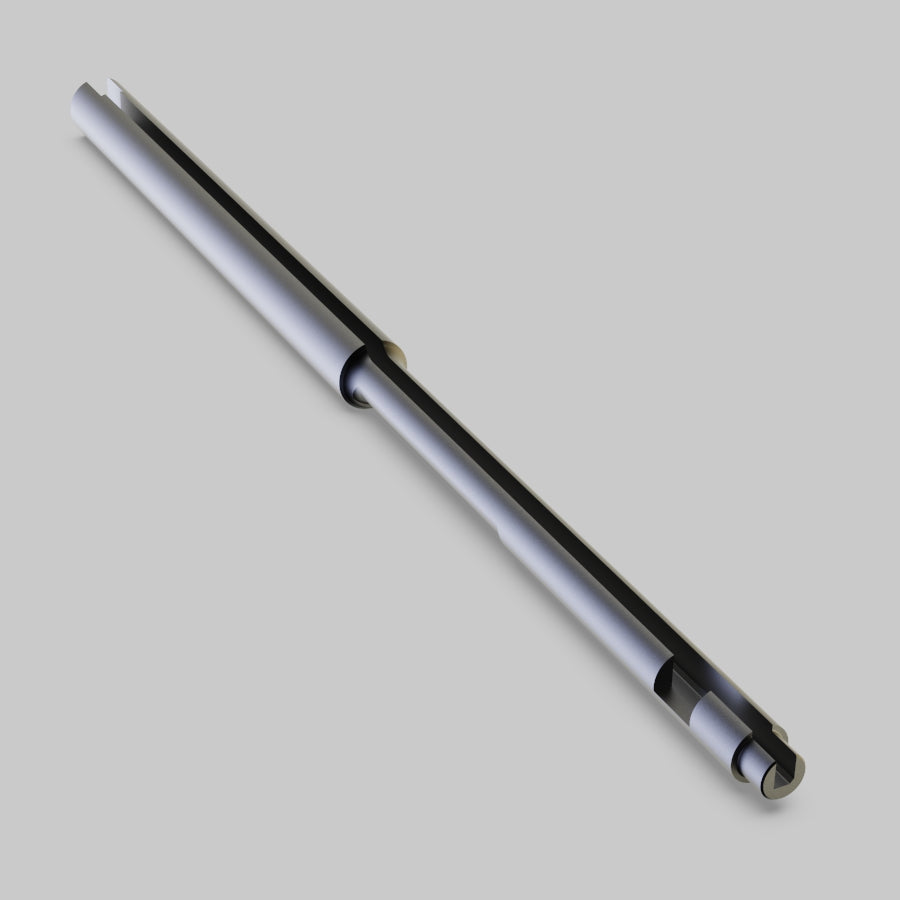

BL5 SOFT STEEL MANDREL
BL5 SOFT STEEL MANDREL
The Sunnen BL5 Mandrel is engineered to deliver exceptional accuracy and surface finish for small to mid-sized bore honing applications. Built for durability and consistent performance, it ensures tight tolerances and superior roundness across a variety of materials. Seamlessly compatible with Sunnen honing systems, the BL5 is ideal for both production and repair environments seeking reliable, repeatable results.
Specs
Specs
Abr length (in) | 1.25 |
---|---|
Abr length (mm) | 31.75 |
Max diameter (in) | 0.175 |
Max diameter (mm) | 4.445 |
Min diameter (in) | 0.17 |
Min diameter (mm) | 4.318 |
Reach length (in) | 2.125 |
Reach length (mm) | 53.975 |
Shank length (in) | 0.875 |
Shank length (mm) | 22.225 |
Shoe type | SOFT STEEL |
Stone size | L5 |
Sub-family | BL5 |
Tool series | L Series |
