BL6 HARD STEEL MANDREL
BL6 HARD STEEL MANDREL

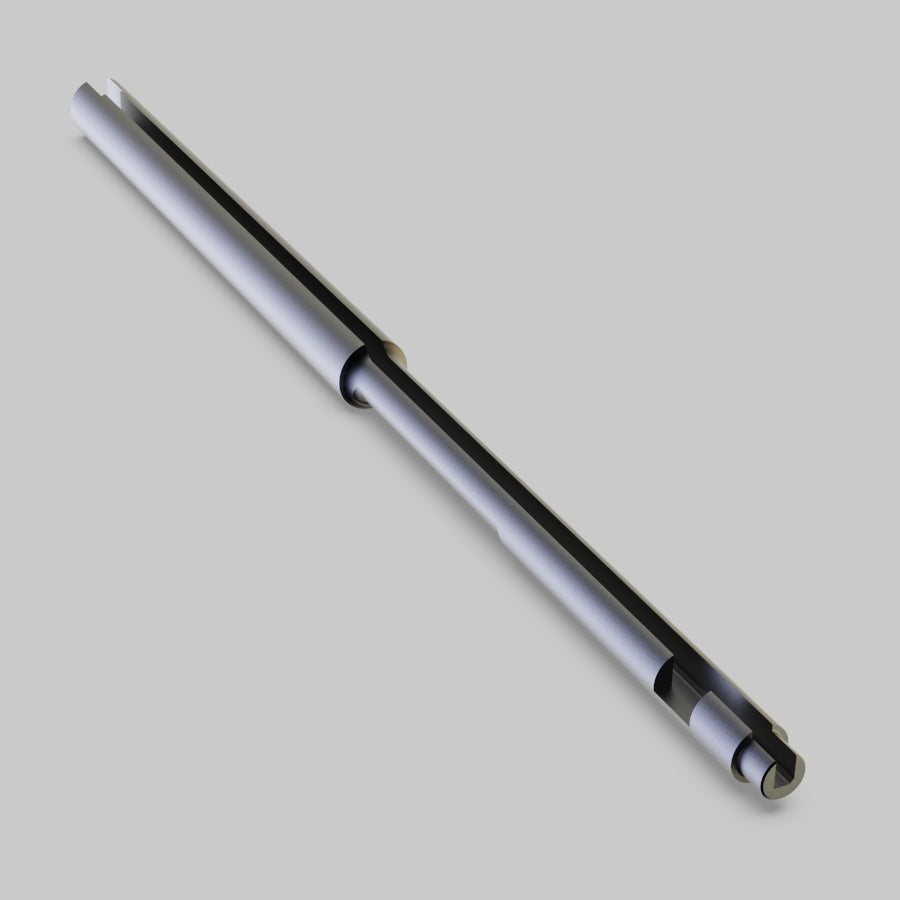

The Sunnen BL6 Mandrel is designed to provide precise bore sizing and excellent surface finishes for small to medium-sized bores. Engineered for durability and consistent performance, the BL6 delivers reliable, repeatable results across a wide range of materials and applications. Fully compatible with Sunnen honing systems, it is the ideal choice for shops focused on quality and efficiency.
Specs
Specs
| Abr length (in) | 1.375 |
|---|---|
| Abr length (mm) | 34.925 |
| Max diameter (in) | 0.24 |
| Max diameter (mm) | 6.096 |
| Min diameter (in) | 0.235 |
| Min diameter (mm) | 5.969 |
| Reach length (in) | 2.625 |
| Reach length (mm) | 66.675 |
| Shank length (in) | 1.25 |
| Shank length (mm) | 31.75 |
| Shoe type | HARD STEEL |
| Stone size | L6 |
| Sub-family | BL6 |
| Tool series | L Series |
Sunnen Service Team
Your Sunnen Technical Specialist will work with you to determine the best solution for your needs – it’s all part of the added value you get with Sunnen. Plus, our worldwide sales and service team provides comprehensive support for the installation and operation of every system we make. Whatever your need, we have the expertise and product range to create the right solution for you and the dedication to support you for the long run.
