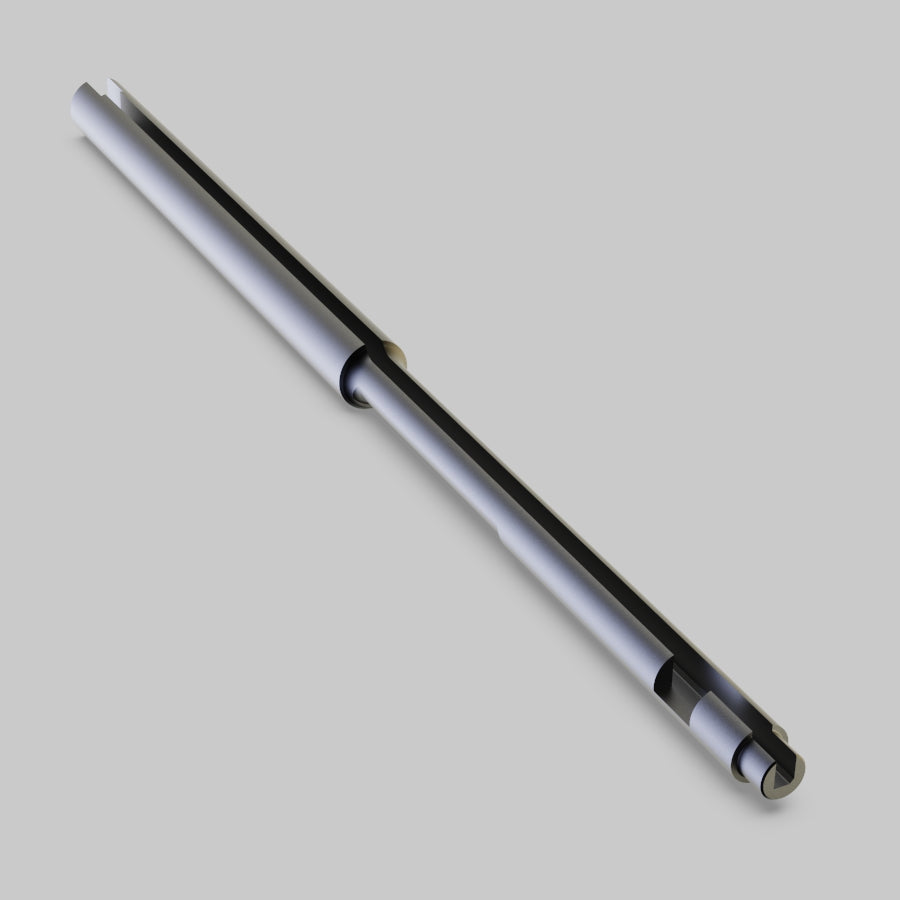

BL8 DIAMOND PLATED MANDREL
BL8 DIAMOND PLATED MANDREL
The Sunnen BL8 Mandrel is crafted for high-accuracy honing of medium-sized bores, delivering exceptional roundness, size control, and surface finish. Built for durability and consistent operation, the BL8 ensures reliable, repeatable results in demanding production and repair environments. Compatible with Sunnen honing systems, it is a trusted solution for achieving superior bore quality every time.
Specs
Specs
| Abr length (in) | 2.25 |
|---|---|
| Abr length (mm) | 57.15 |
| Max diameter (in) | 0.25 |
| Max diameter (mm) | 6.35 |
| Min diameter (in) | 0.245 |
| Min diameter (mm) | 6.223 |
| Reach length (in) | 4.125 |
| Reach length (mm) | 104.775 |
| Shank length (in) | 1.875 |
| Shank length (mm) | 47.625 |
| Shoe type | DIAMOND PLATED |
| Stone size | L8 |
| Sub-family | BL8 |
| Tool series | L Series |
Sunnen Service Team
Your Sunnen Technical Specialist will work with you to determine the best solution for your needs – it’s all part of the added value you get with Sunnen. Plus, our worldwide sales and service team provides comprehensive support for the installation and operation of every system we make. Whatever your need, we have the expertise and product range to create the right solution for you and the dedication to support you for the long run.
