• Main Bearing Bore Diameter Range: 46 – 178 mm (1.800 – 7.000 in.) Special tooling required for 127 – 178 mm (5.000 – 7.000 in.)
• Capacity: V blocks (both 90° and 60°), overhead and L-head in-line blocks, up to 1140 mm (45 in.) long, 710 mm (28 in.) from head deck to main bearing centerline.

CH100CA – Line Hone 220 V 50 Hz Single Phase, CE Guarding
CH100IK – Line Hone Industrial Version- 115 V 60 Hz Single Phase
CH100K – Line Hone 115 V 60 Hz Single Phase

• Minimum Stock Removal: Usually less than 0.003" (0.076 mm) off the caps compared to as much as 0.010" (0.254 mm) with boring.
• Maximum Precision: Corrects distortion caused by warpage and cap stretch.
• Factory-Level Accuracy: Meets or exceeds original factory accuracy for alignment, roundness, and size.
• Fast and Easy Setup: No special training required.
• Ease of Operation: Simple to use for consistent results.

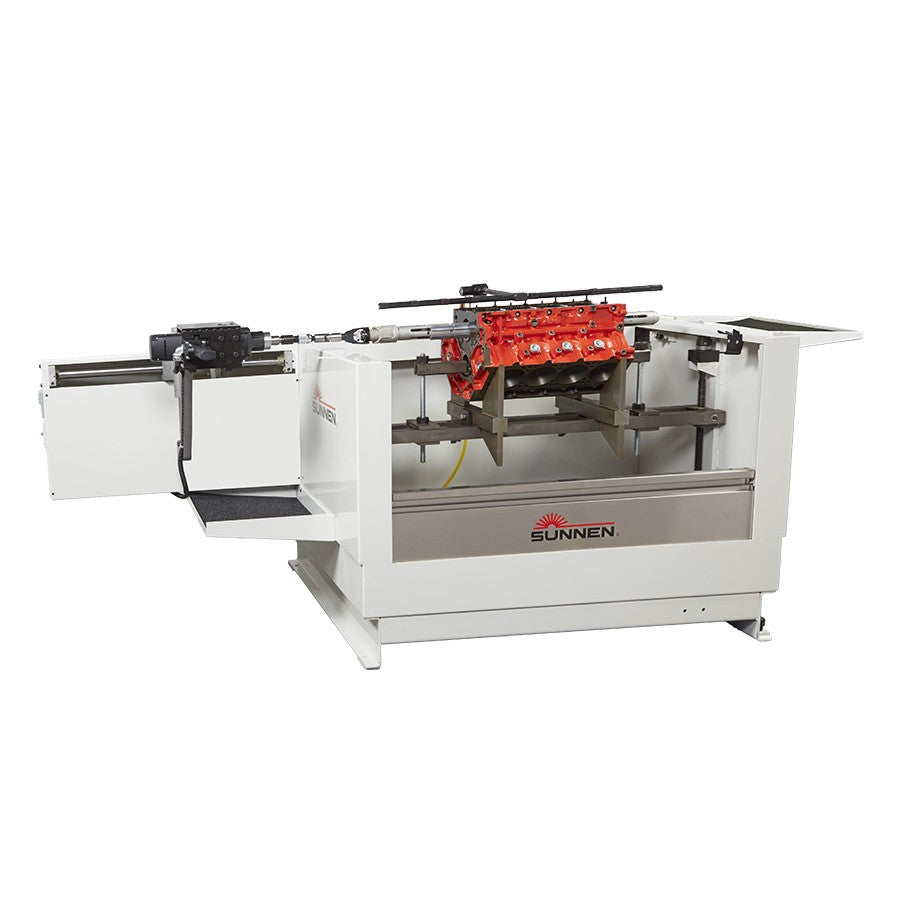

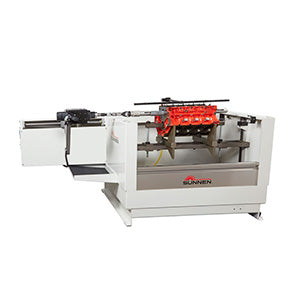

Shops all over the country enjoy the advantages of the CH-100, but the best, most practical reasons are speed and ease of use. Add quality work, and that about sums it up. The CH-100 is a reliable solution for precision alignment and sizing of main bearing bores.
