Specs

Diameter Range (I.D.): 64-533 mm (2.5 – 21 in)
Diameter Range (O.D.): 610 mm (24 in) max
Spindle Speed: 20-300 RPM
Spindle Power: 2.24 kW (3 Hp)

Models

HTA2100 – Light Duty Tube Hone- 2.1 meter stroke, includes coolant system, 400 V 50 Hz/460 V 60 Hz
HTA2100CE – Light Duty Tube Hone- 2.1 meter stroke, includes coolant system, 400 V 50 Hz/460 V 60 Hz, CE
HTA2100PS – Light Duty Tube Hone- Power Section- 2.1 meter stroke, includes coolant system, 400 50 Hz/460 60 Hz
HTA4100 – Light Duty Tube Hone- 4.1 meter stroke, includes coolant system, 400 50 Hz/460 60 Hz
HTA4100CE – Light Duty Tube Hone- 4.1 meter stroke, includes coolant system, 400 50 Hz/460 60 Hz, CE
HTA6100 – Light Duty Tube Hone- Power Section- 6.1 meter stroke, includes coolant system, 400 50 Hz/460 60 Hz

Features + Benefits

Ideal for resurfacing and repair work where light-duty stock removal is needed, up to 0.030 inches (0,76 mm)
Electromechanical stoker and spindle, features a Siemens servo stroker motor with belt drive for quiet and precise operation combined with a 3 Hp (2,24 kW) spindle unit
Powerful Siemens PLC with color touch screen controls electrical functions of the system in conjunction with standard push buttons and a joystick
Auto tensioning system includes a programmable auto tool feed that is standard. The abrasives can be fed up manually as well
Works with Sunnen portable tooling for precise, accurate and consistent bore sizing. Bore diameter range: 2.5 - 21 inches (64 - 533 mm)

Additional Information

The HTA is the first all-electric tube hone engineered specifically for hydraulic service facilities doing resurfacing and repair of actuators for construction, mining, farming and forestry equipment. It is also ideal for applications such as flow tube/meter run cleanup, extruder tube repair and other low stock removal jobs.

The HTA Series is available in two models: the HTA-2100 (2-meter/6.56 ft. stroke) and the HTA-4100 (4 meter/13.12 ft. stroke).

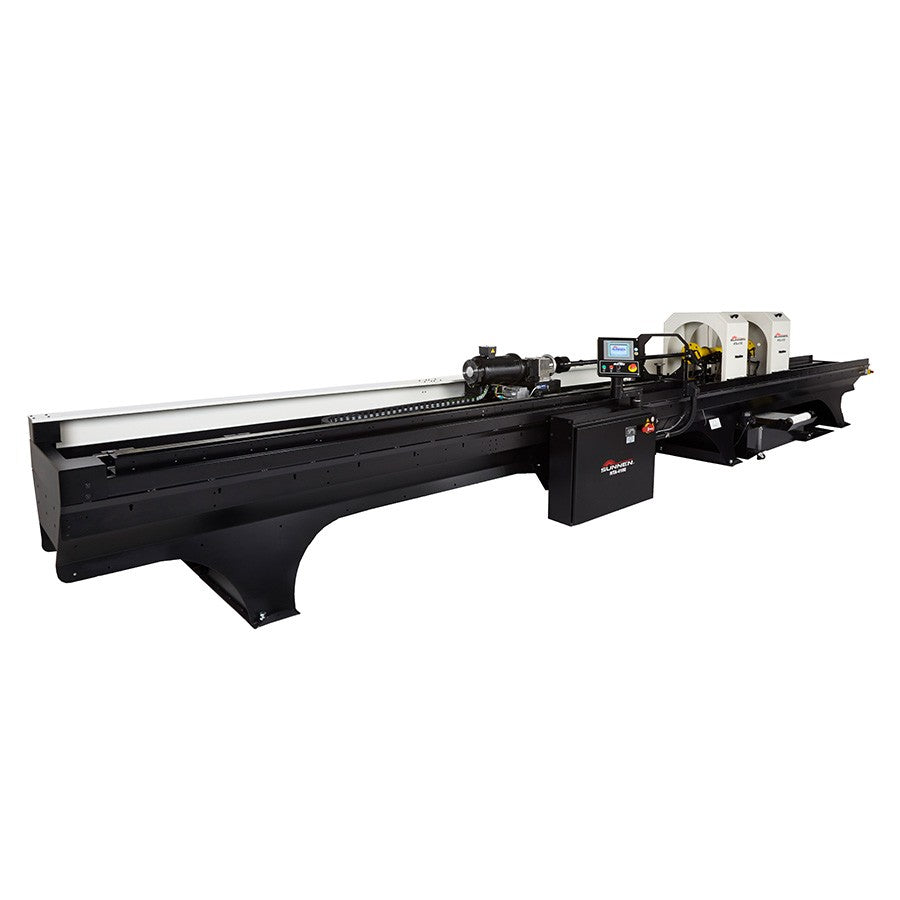

HTA Tube Honing Machine

Name: HTA Tube Honing Machine
Brand: Sunnen Products Company
Availability: InStock

Sunnen's HTA Series Horizontal Tube Hone is affordable and flexible yet has capabilities typically found in high-end systems such as a PLC-control with touch-screen interface for setting all machine parameters.

The machine is easy to set up and operate, even by less skilled operators. All setups are accomplished through the control panel at the front of the machine. There is no need to remove covers or doors to set vertical carriage positions as in some other machines.

Specs

Diameter Range (I.D.): 64-533 mm (2.5 – 21 in)
Diameter Range (O.D.): 610 mm (24 in) max
Spindle Speed: 20-300 RPM
Spindle Power: 2.24 kW (3 Hp)

Models

Features + Benefits

Ideal for resurfacing and repair work where light-duty stock removal is needed, up to 0.030 inches (0,76 mm)
Electromechanical stoker and spindle, features a Siemens servo stroker motor with belt drive for quiet and precise operation combined with a 3 Hp (2,24 kW) spindle unit
Powerful Siemens PLC with color touch screen controls electrical functions of the system in conjunction with standard push buttons and a joystick
Auto tensioning system includes a programmable auto tool feed that is standard. The abrasives can be fed up manually as well
Works with Sunnen portable tooling for precise, accurate and consistent bore sizing. Bore diameter range: 2.5 - 21 inches (64 - 533 mm)

Additional Information

The HTA Series is available in two models: the HTA-2100 (2-meter/6.56 ft. stroke) and the HTA-4100 (4 meter/13.12 ft. stroke).
