• Diameter Range (I.D.) standard: 25 – 350 mm (1 – 13.8 in)
• Diameter Range (I.D.) optional: Up to 550 mm (21.654 in)
• Diameter Range (O.D.) standard: 60 – 400 mm (6.24 – 15.8 in)
• Diameter Range (O.D.) optional: 350 – 600 mm (13.8 – 23.6 in)
• Spindle Motor: 3 kW (4 Hp)

HTB2000S00 – 2 meter, 3.5 kW spindle, 460 VAC, 3 PH, includes MPS adapter/does not include coolant system and tool support
HTB2000S00CE – 2 meter, 3.5 kW spindle, 460 VAC, 3 PH, includes MPS adapter/does not include coolant system and tool support. Includes CE guarding- fence/light curtain
HTB3000S00 – 3 meter, 3.5 kW spindle, 460 VAC, 3 PH, includes MPS adapter/does not include coolant system and tool support
HTB3000S00CE – 3 meter, 3.5 kW spindle, 460 VAC, 3 PH, includes MPS adapter/does not include coolant system and tool support. Includes CE guarding- fence/light curtain
HTB4000S00 – 4 meter, 3.5 kW spindle, 460 VAC, 3 PH, includes MPS adapter/does not include coolant system and tool support
HTB4000S00CE – 4 meter, 3.5 kW spindle, 460 VAC, 3 PH, includes MPS adapter/does not include coolant system and tool support. Includes CE guarding- fence/light curtain
HTB6000S00 - 6 meter, 3.5 kW spindle, 460 VAC, 3 PH, includes MPS adapter/does not include coolant system and tool support
HTB6000S00CE - 6 meter, 3.5 kW spindle, 460 VAC, 3 PH, includes MPS adapter/does not include coolant system and tool support. Includes CE guarding-fence/light curtain
HTB8000S00 - 8 meter, 3.5 kW spindle, 460 VAC, 3 PH, includes MPS adapter/does not include coolant system and tool support
HTB8000S00CE - 8 meter, 3.5 kW spindle, 460 VAC, 3 PH, includes MPS adapter/does not include coolant system and tool support. Includes CE guarding- fence/light curtain

• A PLC control and digital display allow complete control and monitoring of machine conditions
• A built-in load meter indicates high and low spots in the tube bore as the operator can adjust the stroke as required for optimum cycle time
• The operator can also work out tight spots in the bore when using the Short Stroke Cycle and Stroke Dwell features
• The Sunnen Modular Honing Tool System continually compensates for stock removal and stone wear to keep the machine running at peak efficiency at all times
• The HTB series is available in two-meter, four-meter, six-meter and eight-meter models, several different tooling systems are available depending on the specific application
• Lifetime application service with every machine purchase

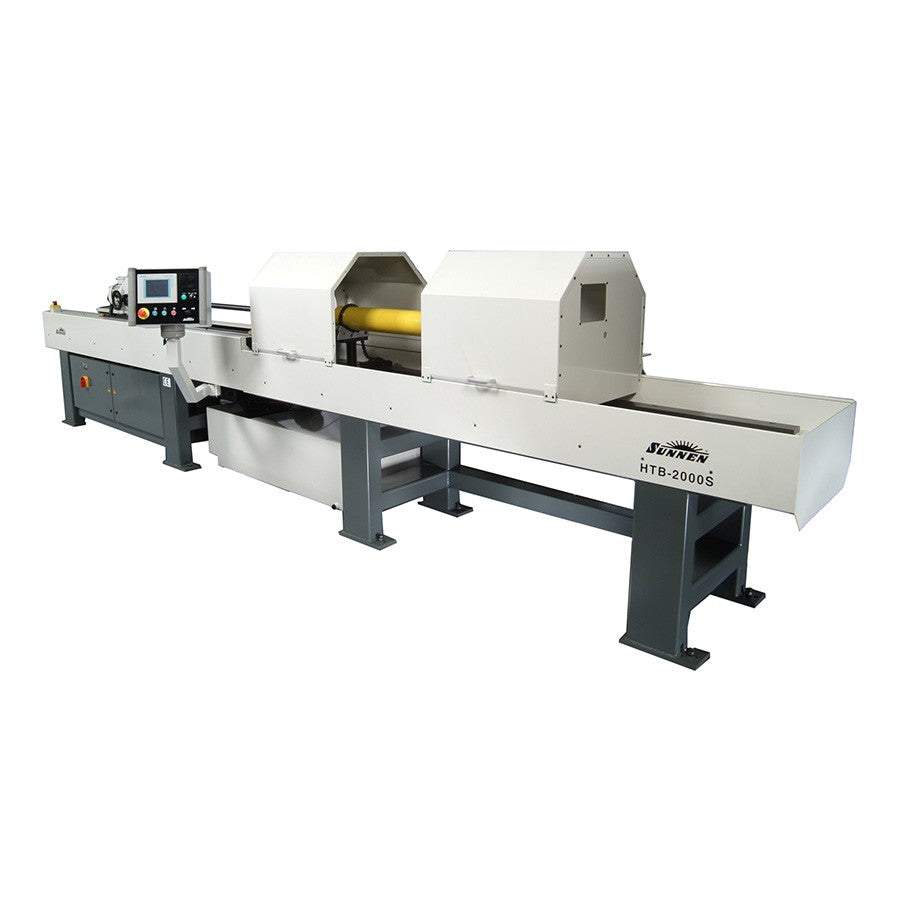

The HTB-S Series is a medium-duty tube hone the combines the best features of other Sunnen tube hones. Precision sizing and fi nishing of long and large bores has never been easier or more productive.
