• Diameter Range (I.D.): 50 – 500 mm (2 – 20 in)
• Diameter Range (O.D.): 850 mm (33.5 in) max
• Spindle Motor: 22 kW (29.5 Hp)
• Servo Stroke Motor: 14.0 kW (18.75 Hp)

HTD4300W - HTD Series Tube Hone, 22 kW spindle, 4 meter bore length, no coolant system, scanner/rear fence safety system
HTD6300W - HTD Series Tube Hone, 22 kW spindle, 6 meter bore length, no coolant system, scanner/rear fence safety system
HTD8300W - HTD Series Tube Hone, 22 kW spindle, 8 meter bore length, no coolant system, scanner/rear fence safety system
HTD10300W - HTD Series Tube Hone, 22 kW spindle, 10 meter bore length, no coolant system, scanner/rear fence safety system
HTD12300W - HTD Series Tube Hone, 22 kW spindle, 12 meter bore length, no coolant system, scanner/rear fence safety system
HTD14300W - HTD Series Tube Hone, 22 kW spindle, 14 meter bore length, no coolant system, scanner/rear fence safety system
HTD4400W - HTD Series Tube Hone, 30 kW spindle, 4 meter bore length, no coolant system, scanner/rear fence safety system
HTD6400W - HTD Series Tube Hone, 30 kW spindle, 6 meter bore length, no coolant system, scanner/rear fence safety system
HTD8400W - HTD Series Tube Hone, 30 kW spindle, 8 meter bore length, no coolant system, scanner/rear fence safety system
HTD10400W - HTD Series Tube Hone, 30 kW spindle, 10 meter bore length, no coolant system, scanner/rear fence safety system
HTD12400W - HTD Series Tube Hone, 30 kW spindle, 12 meter bore length, no coolant system, scanner/rear fence safety system
HTD14400W - HTD Series Tube Hone, 30 kW spindle, 14 meter bore length, no coolant system, scanner/rear fence safety system

• Automatic bore geometry correction
• 100 percent process control with tool overload protection
• 3-axis function control for stroke positions, stone feed, spindle speed and cutting pressure
• Variable stroke speed, adjustable in 0.1m/min increments
• Tool life for tool insertion and removal
• Front stationary steady rest shaft support
• Lifetime application service with every machine purchase

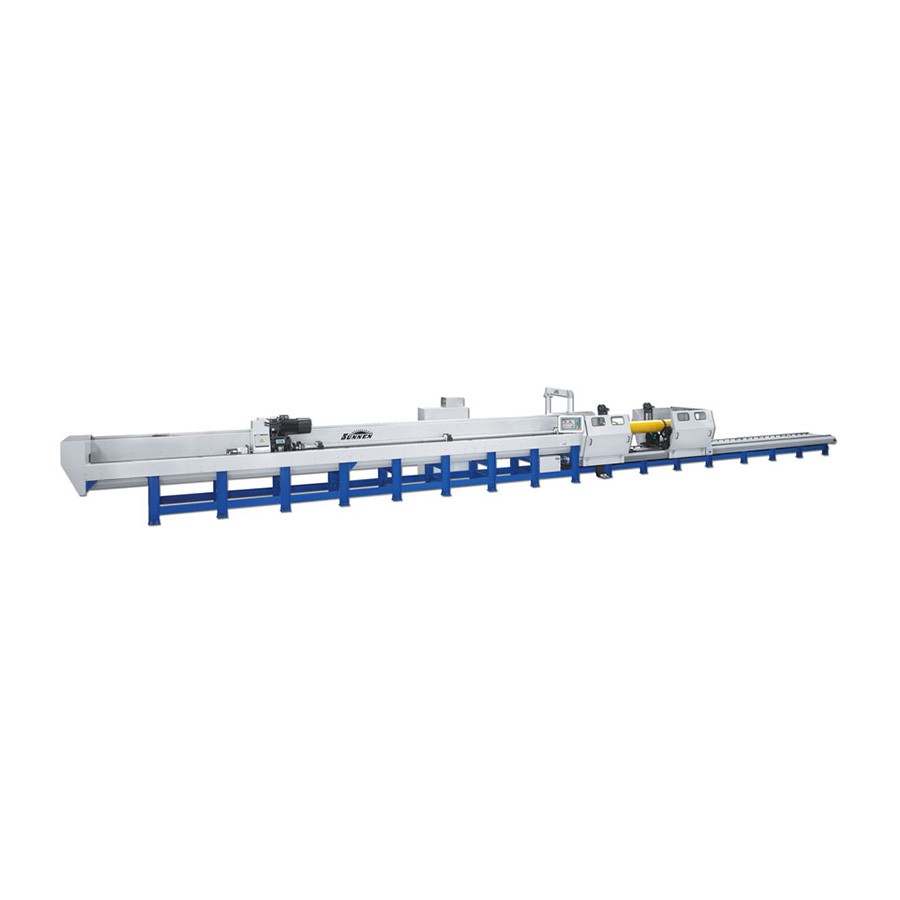

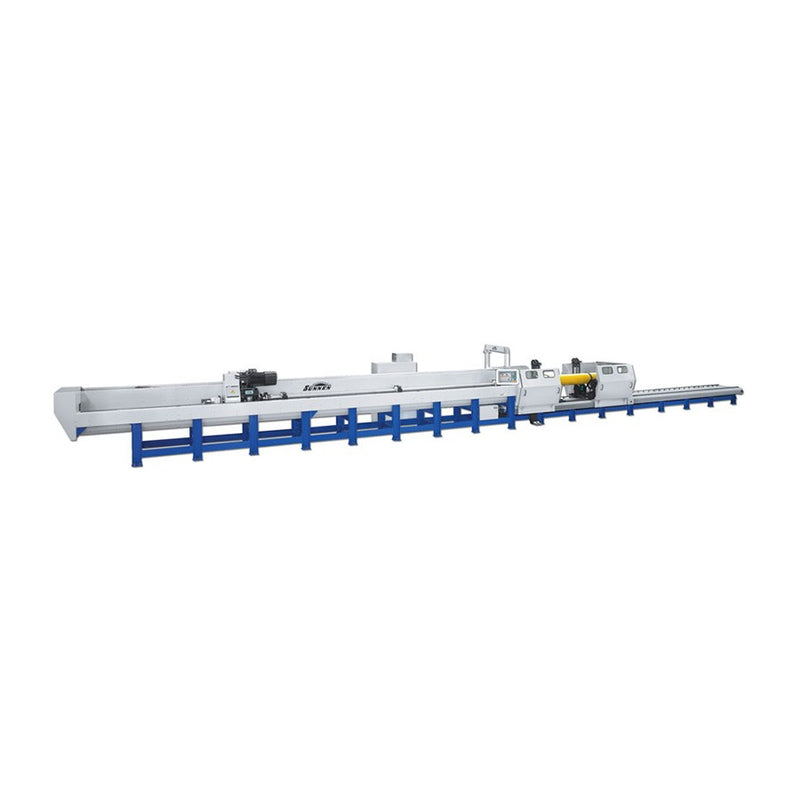

The HTD can handle bore lengths from 4,000 mm (13.1 ft in) to 14,000 mm (45.9 ft). The system is easy to set up and stores more than 900 setups. The system recommends the required tool, sets the spindle speed and all cycle parameters. A new set-up can be made in two minutes.
