• Diameter Range (I.D.): 4 – 20 mm (0.15 – 0.79 in)
• Diameter Range (O.D.): Dependent upon workholding options
• Servo Spindle Motor: .75  kW (1 Hp)
• Servo Stroke Motor: 2,17 kW (2.9 Hp)

HTE1600WCE – Small bore tube hone, 460 VAC/60 Hz, CE guarding- light curtain/rear and ends fencing, PC control, 1.6 m stroke, one traveling steady rest, .75 kW spindle, 2.17 kW belt drive stroker, servo linear push/pull feed, HTA coolant system w/2 PF filter units- does not include work holding or splash guards

HTE1600WE – Small bore tube hone, 460 VAC/60 Hz, PC control, 1.6 m stroke, one traveling steady rest, .75 kW spindle, 2.17 kW belt drive stroker, servo linear push/pull feed, HTA coolant system w/2 PF filter units- does not include work holding or splash guards.

• 100 percent process control with tool overload protection
• One piece base design improves performance and decreases cost
• 3-axis function control for stroke positions, stone feed, spindle speed and cutting pressure
• Variable stroke speed, adjustable in 0.1m/min increments
• Traveling steady rest is standard
• Proven steel reinforced servo belt drive stroking system
• Optional safety system consisting of light curtain and fencing

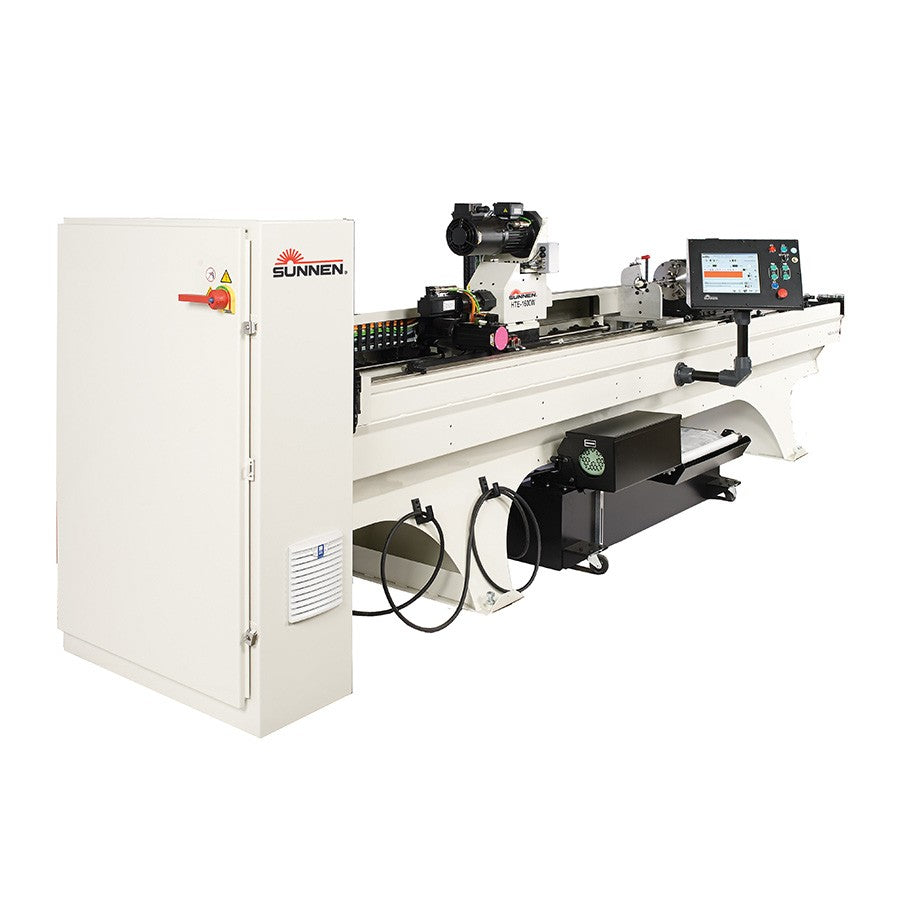

The HTE features a one-piece base design that aligns tool and part. A special feature of the feed system provides maximum protection against tool overloading that often leads to breakage. Tool specific force limits and run settings are stored in the Windows-based touchscreen control. A unique feed control system senses tight sections in the part and automatically corrects them.
