• Diameter Range (I.D.): 25 – 1000 mm (1 – 40 in)
• Diameter Range (O.D.): 60 -400 mm (2.4 – 15.8 in) standard; 350 – 600 mm (13.8 – 23.6) optional
• Spindle Motor: 6.0 kW
• Spindle Speed Rate: 15-450 RPM

HTH2000S01 - 2 meter, 7.5 kW spindle, 460 VAC, 3 PH, spindle adapter, tool support, and coolant system are NOT included
HTH2000S01CE - 2 meter, 7.5 kW spindle, 460 VAC, 3 PH, spindle adapter, tool support and coolant system are NOT included. Includes CE guarding- fence/light curtain
HTH3000S01 - 3 meter, 7.5 kW spindle, 460 VAC, 3 PH, spindle adapter, tool support and coolant system are NOT included
HTH3000S01CE - 3 meter, 7.5 kW spindle, 460 VAC, 3 PH, spindle adapter, tool support and coolant system are NOT included. Includes CE guarding- fence/light curtain
HTH4000S01 - 4 meter, 7.5 kW spindle, 460 VAC, 3 PH, spindle adapter, tool support and coolant system are NOT included
HTH4000S01CE - 4 meter, 7.5 kW spindle, 460 VAC, 3 PH, spindle adapter, tool support and coolant system are NOT included. Includes CE guarding- fence/light curtain
HTH6000S01 - 6 meter, 7.5 kW spindle, 460 VAC, 3 PH, spindle adapter, tool support and coolant system are NOT included
HTH6000S01CE - 6 meter, 7.5 kW spindle, 460 VAC, 3 PH, spindle adapter, tool support and coolant system are NOT included. Includes CE guarding- fence/light curtain
HTH8000S01 - 8 meter, 7.5 kW spindle, 460 VAC, 3 PH, spindle adapter, tool support and coolant system are NOT included
HTH8000S01CE - 8 meter, 7.5 kW spindle, 460 VAC, 3 PH, spindle adapter, tool support and coolant system are NOT included. Includes CE guarding- fence/light curtain
HTH10000S01 - 10 meter, 7.5 kW spindle, 460 VAC, 3 PH, spindle adapter, tool support and coolant system are NOT included
HTH10000S01CE - 10 meter, 7.5 kW spindle, 460 VAC, 3 PH, spindle adapter, tool support and coolant system are NOT included. Includes CE guarding- fence/light curtain
HTH12000S01 - 12 meter, 7.5 kW spindle, 460 VAC, 3 PH, spindle adapter, tool support and coolant system are NOT included
HTH12000S01CE - 12 meter, 7.5 kW spindle, 460 VAC, 3 PH, spindle adapter, tool support and coolant system are NOT included. Includes CE guarding- fence/light curtain

• A PLC control and digital display allow complete control and monitoring of machine conditions.
• A built-in load meter indicates high and low spots in the tube bore as the operator can adjust the stroke as required for optimum cycle time.
• Operator can also work out tight spots in the bore when using the Short Stroke Cycle and Stroke Dwell features.)
• The Sunnen Modular Honing Tool System continually compensates for stock removal and stone wear to keep the machine running at peak efficiency at all times.
• The HTH series is available in two-meter, four-meter, six-meter, eight-meter, and ten-meter models. Several different tooling systems are available depending on the specific application.
• Lifetime application service with every machine purchase.

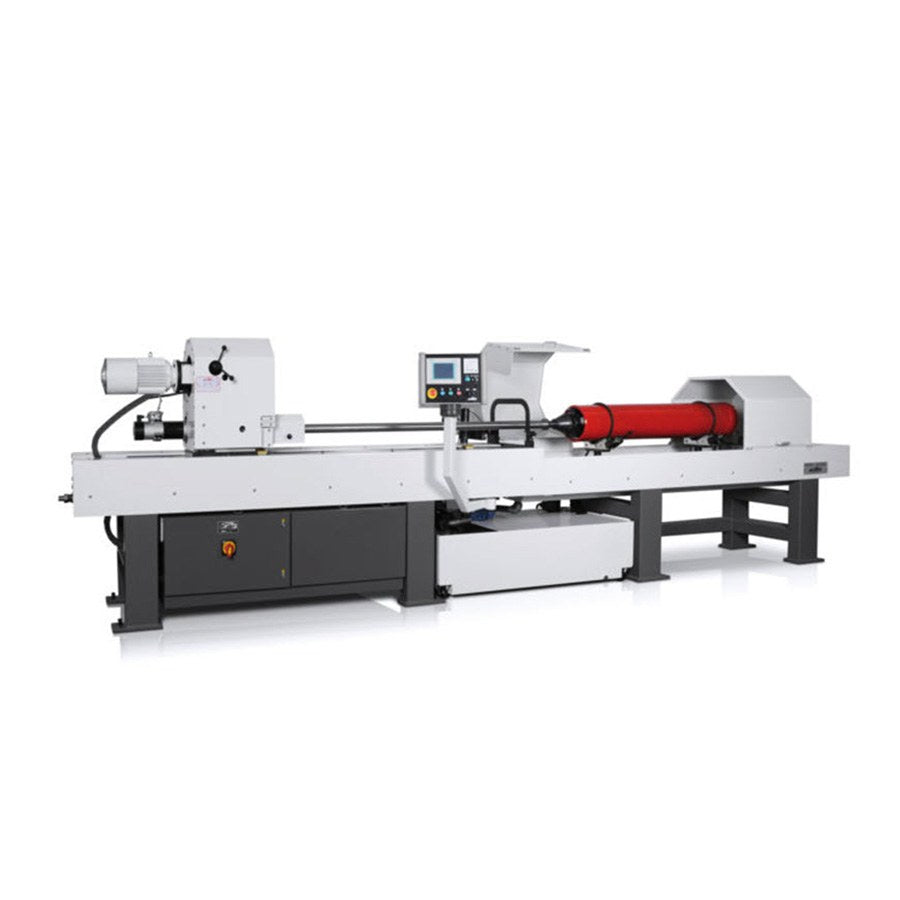

The HTH-S Series has now more power and an easy set-up control with wide 10.4” colour touch screen panel. With the 6 kW spindle drive system and the 4-step gearbox the HTH-S ensures maximum power in the whole diameter range (up to 800 cm3/h).

In addition the system works with a belt driven tool drive which guarantees smooth working conditions and shock protection for the gear box. It is the first system of its kind which offers high flexibility on a production level.

Together with the Sunnen tools, abrasives and coolant oils all the HTH-S systems are working at their top performance and will meet customized production demands.
