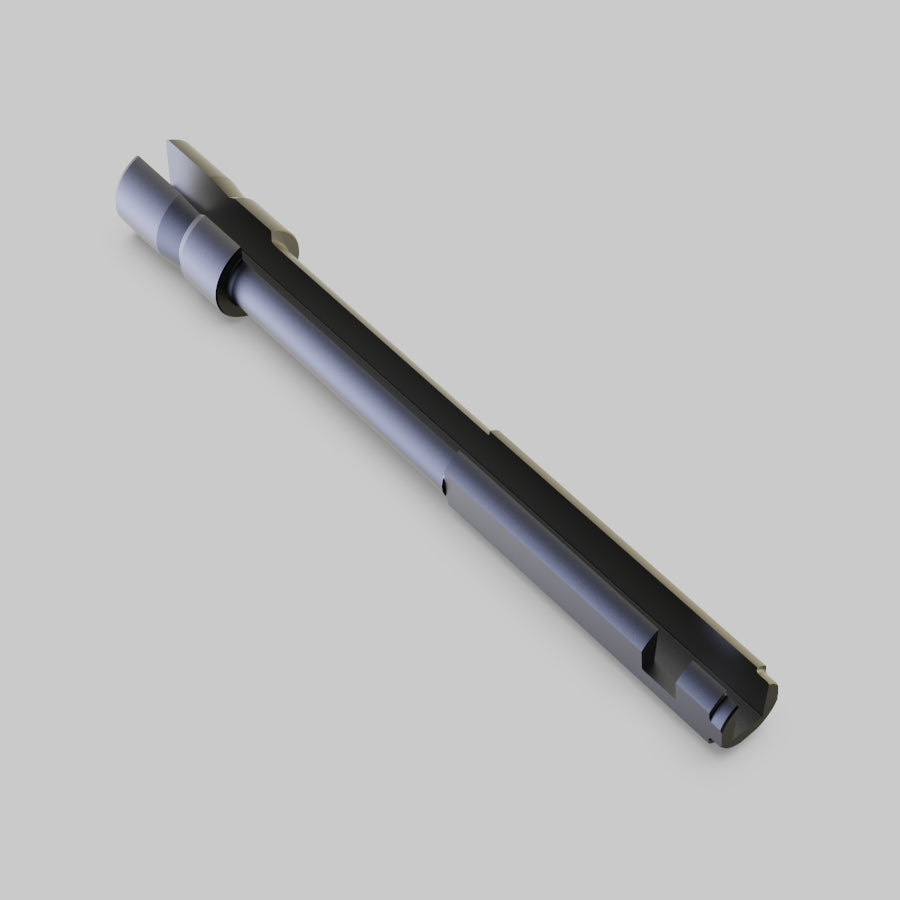

K20 SOFT STEEL MANDREL
K20 SOFT STEEL MANDREL
Unlock superior performance with Sunnen K20 tooling, the trusted choice for high-precision honing. Engineered for durability and accuracy, the K20 series delivers consistent bore geometry and exceptional surface finishes across a wide range of applications. Ideal for use with Sunnen honing machines, K20 tooling ensures quick setup, easy adjustment, and long-lasting reliability—making it the perfect solution for shops demanding performance and repeatability.
Specs
Specs
| Abr length (in) | 2.5 |
|---|---|
| Abr length (mm) | 63.5 |
| Max diameter (in) | 0.65 |
| Max diameter (mm) | 16.51 |
| Min diameter (in) | 0.619 |
| Min diameter (mm) | 15.7226 |
| Reach length (in) | 4.625 |
| Reach length (mm) | 117.475 |
| Shank length (in) | 2.125 |
| Shank length (mm) | 53.975 |
| Shoe type | SOFT STEEL |
| Stone size | K20 |
| Sub-family | K20 |
| Tool series | K Series |
Sunnen Service Team
Your Sunnen Technical Specialist will work with you to determine the best solution for your needs – it’s all part of the added value you get with Sunnen. Plus, our worldwide sales and service team provides comprehensive support for the installation and operation of every system we make. Whatever your need, we have the expertise and product range to create the right solution for you and the dedication to support you for the long run.
