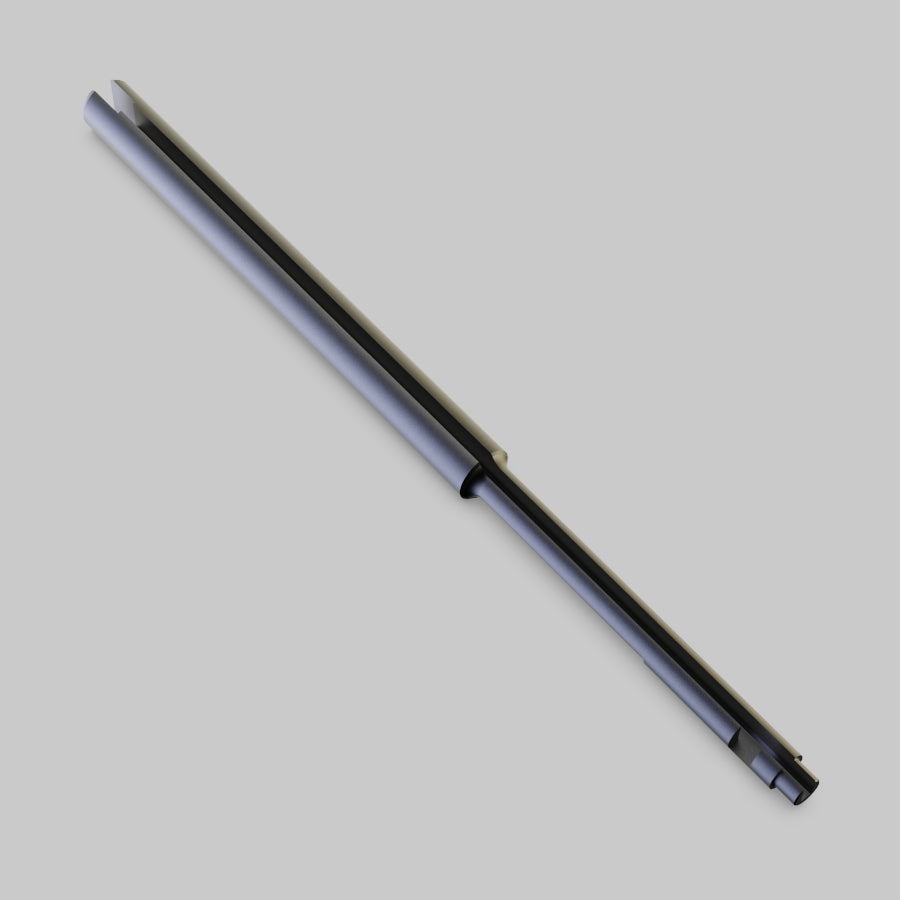

K5 HARD STEEL MANDREL
K5 HARD STEEL MANDREL
Unlock superior performance and precision with Sunnen K5 tooling, designed specifically for use with Sunnen honing machines. Engineered for versatility and durability, the K5 series delivers consistent, high-quality surface finishes and tight tolerances across a wide range of applications. Whether you are working in automotive, aerospace, or general manufacturing, K5 tooling ensures faster setups, longer life, and reliable results — every time.
Specs
Specs
| Abr length (in) | 0.688 |
|---|---|
| Abr length (mm) | 17.4752 |
| Max diameter (in) | 0.18 |
| Max diameter (mm) | 4.572 |
| Min diameter (in) | 0.175 |
| Min diameter (mm) | 4.445 |
| Reach length (in) | 1.563 |
| Reach length (mm) | 39.7002 |
| Shank length (in) | 0.875 |
| Shank length (mm) | 22.225 |
| Shoe type | HARD STEEL |
| Stone size | K5 |
| Sub-family | K5 |
| Tool series | K Series |
Sunnen Service Team
Your Sunnen Technical Specialist will work with you to determine the best solution for your needs – it’s all part of the added value you get with Sunnen. Plus, our worldwide sales and service team provides comprehensive support for the installation and operation of every system we make. Whatever your need, we have the expertise and product range to create the right solution for you and the dedication to support you for the long run.
