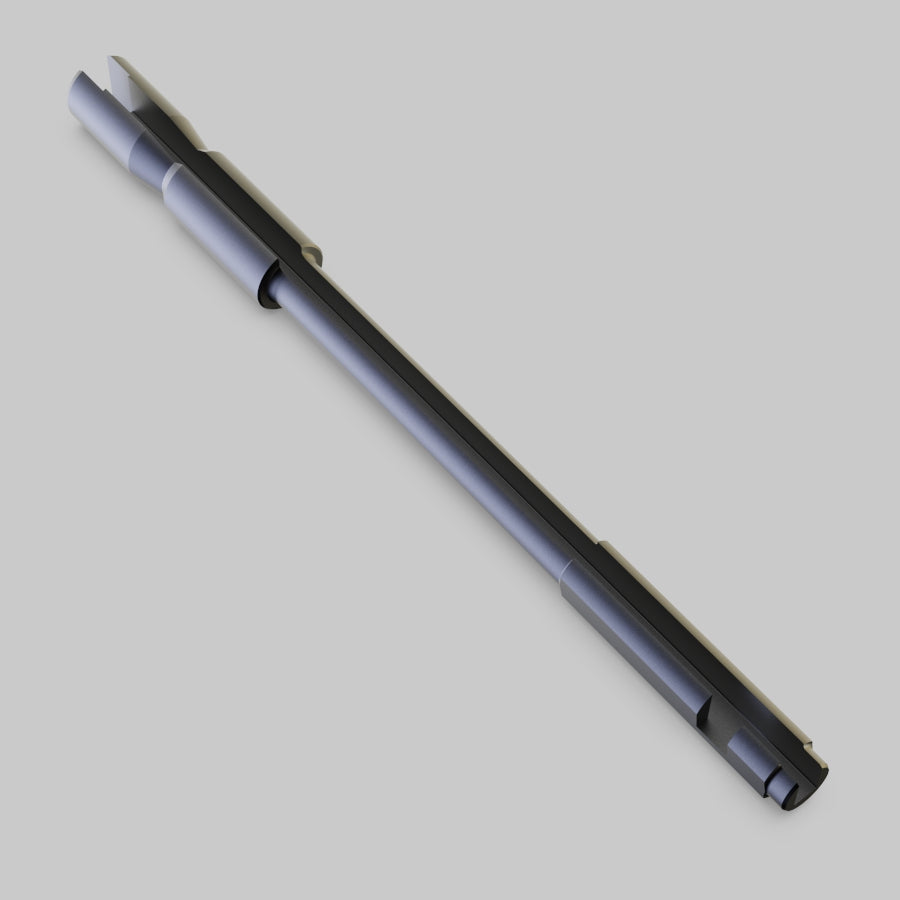

K8 SOFT STEEL MANDREL
K8 SOFT STEEL MANDREL
Unlock exceptional accuracy and performance with Sunnen K8 tooling. Engineered for use with Sunnen horizontal and vertical honing machines, the K8 series delivers superior bore geometry, surface finish, and efficiency. Its modular design ensures quick setup and changeovers, while durable materials extend tool life in high-production environments. Ideal for a wide range of applications, from automotive to aerospace, Sunnen K8 tooling is the smart choice for precision honing that meets your toughest demands.
Specs
Specs
| Abr length (in) | 1.25 |
|---|---|
| Abr length (mm) | 31.75 |
| Max diameter (in) | 0.255 |
| Max diameter (mm) | 6.477 |
| Min diameter (in) | 0.25 |
| Min diameter (mm) | 6.35 |
| Reach length (in) | 3.125 |
| Reach length (mm) | 79.375 |
| Shank length (in) | 1.875 |
| Shank length (mm) | 47.625 |
| Shoe type | SOFT STEEL |
| Stone size | K8 |
| Sub-family | K8 |
| Tool series | K Series |
Sunnen Service Team
Your Sunnen Technical Specialist will work with you to determine the best solution for your needs – it’s all part of the added value you get with Sunnen. Plus, our worldwide sales and service team provides comprehensive support for the installation and operation of every system we make. Whatever your need, we have the expertise and product range to create the right solution for you and the dedication to support you for the long run.
