RETRACTABLE MANDREL
RETRACTABLE MANDREL

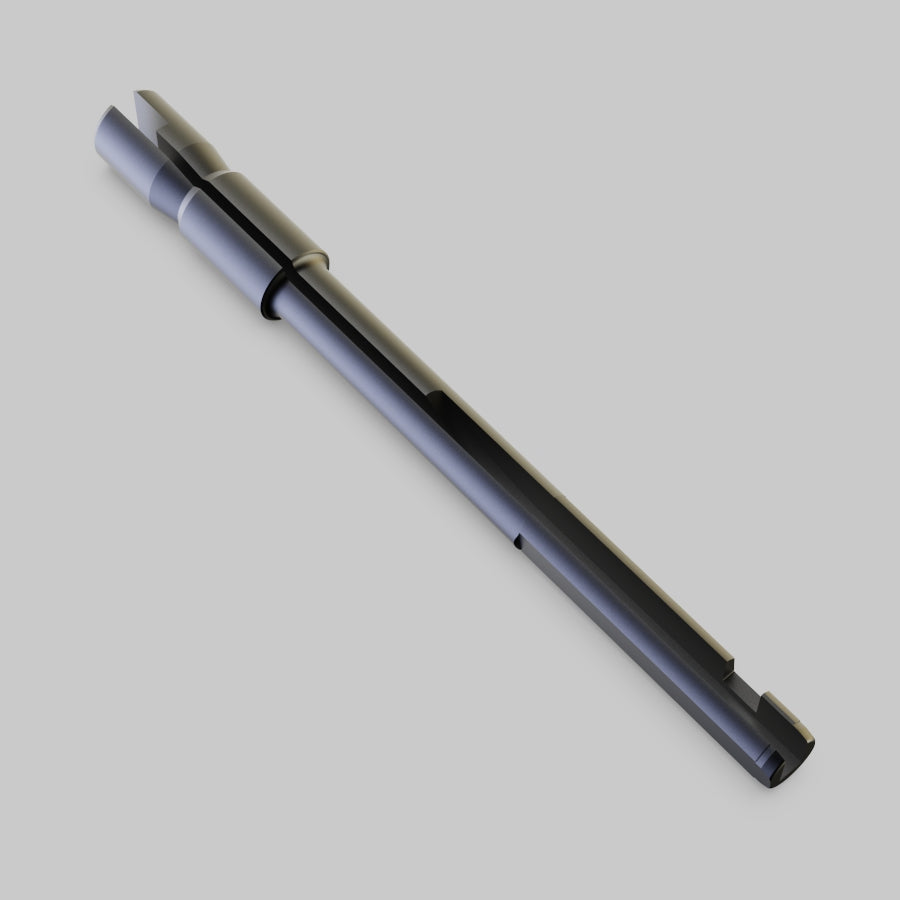

Sunnen KR10 tooling is a precision component engineered for use in retractable mandrel honing systems. Designed to deliver accurate bore sizing and superior surface finishes, it offers reliable performance in demanding applications. Built to Sunnen’s exacting standards, KR10 tooling ensures smooth operation and consistent results across a range of industries.
Specs
Specs
| Abr length (in) | 1.25 |
|---|---|
| Abr length (mm) | 31.75 |
| Max diameter (in) | 0.316 |
| Max diameter (mm) | 8.0264 |
| Min diameter (in) | 0.308 |
| Min diameter (mm) | 7.8232 |
| Reach length (in) | 3.125 |
| Reach length (mm) | 79.375 |
| Shank length (in) | 1.875 |
| Shank length (mm) | 47.625 |
| Shoe type | HARD STEEL |
| Stone size | KR10 |
| Sub-family | KR10 |
| Tool series | KR Series |
