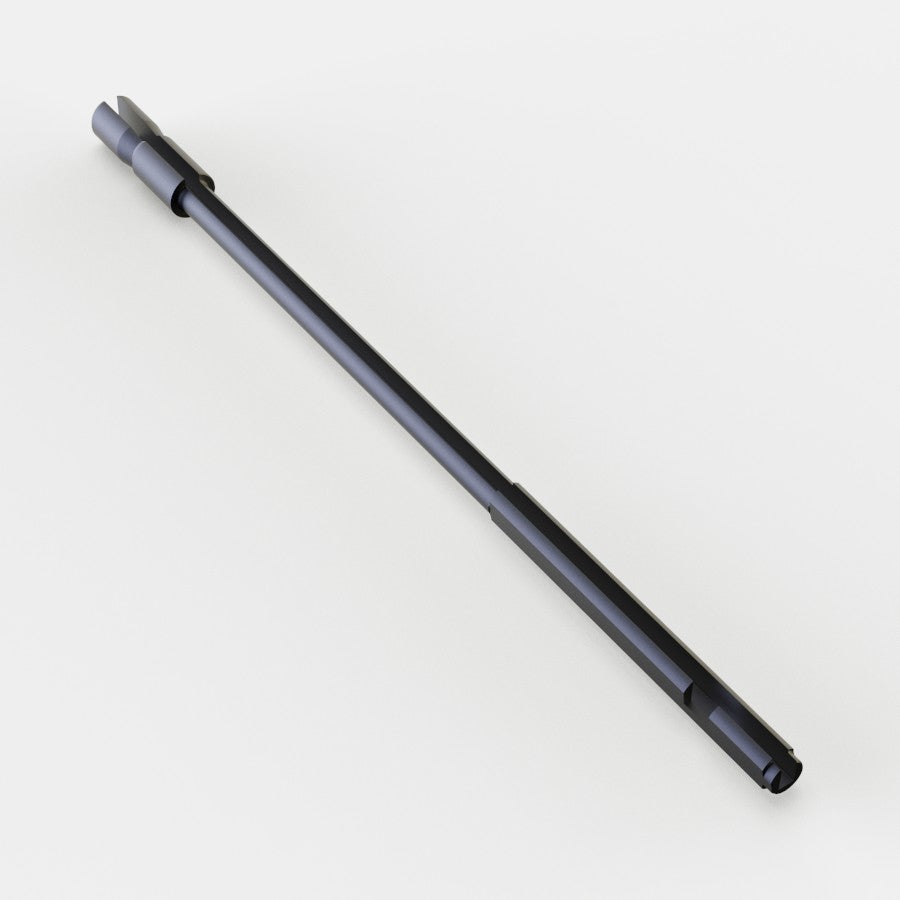

L12 SOFT STEEL MANDREL
L12 SOFT STEEL MANDREL
Sunnen L12 tooling is high-performance and built for precise bore sizing and fine surface finishing in small-diameter honing applications. Designed for reliability and full compatibility within the L12 system, it delivers consistent results in demanding environments like aerospace, automotive, and precision manufacturing.
Specs
Specs
| Abr length (in) | 3.5 |
|---|---|
| Abr length (mm) | 88.9 |
| Max diameter (in) | 0.385 |
| Max diameter (mm) | 9.779 |
| Min diameter (in) | 0.37 |
| Min diameter (mm) | 9.398 |
| Reach length (in) | 8.375 |
| Reach length (mm) | 212.725 |
| Shank length (in) | 4.875 |
| Shank length (mm) | 123.825 |
| Shoe type | SOFT STEEL |
| Stone size | L12 |
| Sub-family | L12 |
| Tool series | L Series |
