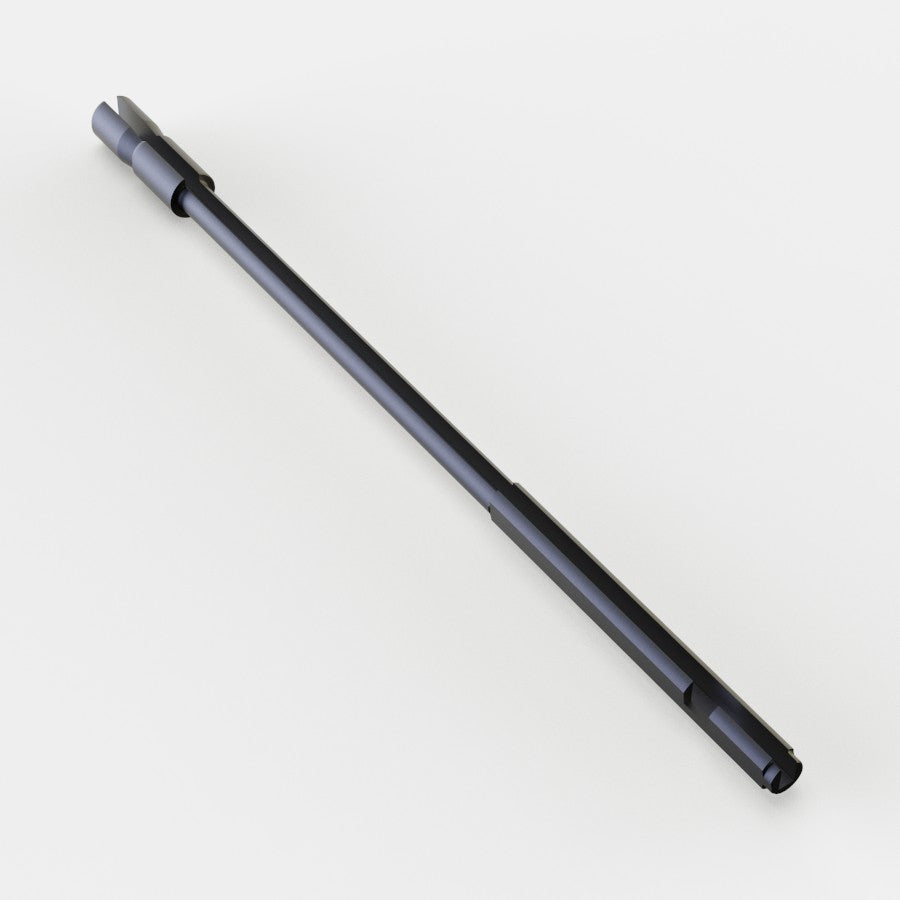

L20 SOFT STEEL MANDREL
L20 SOFT STEEL MANDREL
Sunnen L20 tooling is a robust, precision-crafted series designed for accurate bore sizing and fine surface finishing in large-diameter applications. Engineered for compatibility within the L20 system, it delivers consistent, high-performance results in demanding environments like aerospace, energy, and heavy manufacturing.
Specs
Specs
| Abr length (in) | 4.5 |
|---|---|
| Abr length (mm) | 114.3 |
| Max diameter (in) | 0.681 |
| Max diameter (mm) | 17.2974 |
| Min diameter (in) | 0.65 |
| Min diameter (mm) | 16.51 |
| Reach length (in) | 9.625 |
| Reach length (mm) | 244.475 |
| Shank length (in) | 5.125 |
| Shank length (mm) | 130.175 |
| Shoe type | SOFT STEEL |
| Stone size | L20 |
| Sub-family | L20 |
| Tool series | L Series |
Sunnen Service Team
Your Sunnen Technical Specialist will work with you to determine the best solution for your needs – it’s all part of the added value you get with Sunnen. Plus, our worldwide sales and service team provides comprehensive support for the installation and operation of every system we make. Whatever your need, we have the expertise and product range to create the right solution for you and the dedication to support you for the long run.
