PRECISION GAGE
PRECISION GAGE
The PG Series Precision Bore Gaging System is a unique mechanical gaging system developed by Sunnen that makes I.D. gaging simple, reliable and economical. The PG series design is rugged and reliable, having been proven over decades of use on shop floors around the world. The PG precision gage is a productive complement to Sunnen or other honing machines where they are used to measure bores as part of the honing operation.

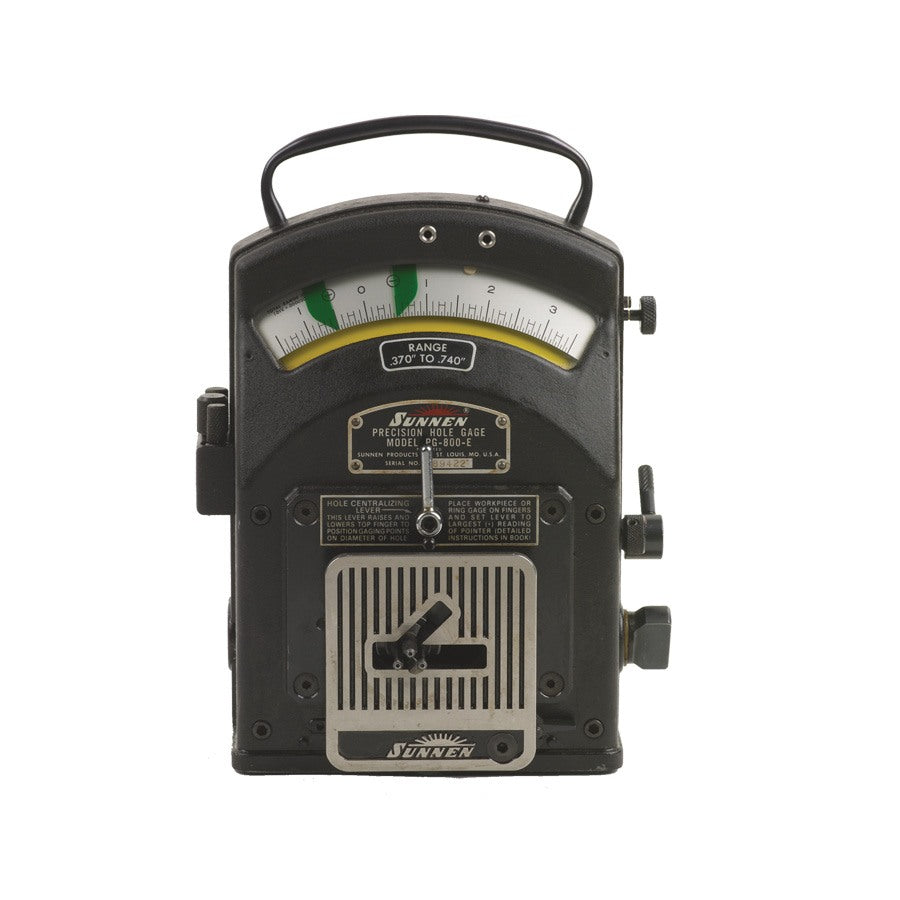

The PG-800E Precision Bore Gage is for diameters from 0.370 to 1.500 in (9.4 mm to 38.1 mm). Direct reading scale with 0.005 in (0.13 mm) range divided into increments of 0.00005 in (0.001 mm).
Features & Benefits
- Instant setup for any size bore
- No master rings or plug gages to buy
- No power source needed - completely portable
- Stays set and repeats within .000010 in (0.00025 mm)
- Rugged, reliable tool for the shop floor or QC department
- Designed to work as a system with Sunnen PG Series Setting Fixtures
- Easy to set and easy to use
The PG-800EM is available for metric applications.
Specs
Specs
| Max diameter (in) | 1.5 |
|---|---|
| Min diameter (in) | .375 |
| Reach length (in) | small .968/large 1.656 |
Sunnen Service Team
Your Sunnen Technical Specialist will work with you to determine the best solution for your needs – it’s all part of the added value you get with Sunnen. Plus, our worldwide sales and service team provides comprehensive support for the installation and operation of every system we make. Whatever your need, we have the expertise and product range to create the right solution for you and the dedication to support you for the long run.
