Specs

Diameter Range: 1.5 mm to 165.1 mm (0.060 in. to 6.500 in.)
Stroke Length: 6 to 392 mm (0.24 - 15.43 in.)

Models

SH4000 – Power Stroked Honing Machine- Servo spindle/ball screw stroker, rear mounted electrical enclosure, coolant system, 400 VAC/460 VAC, CE guarding
SH4000L – Power Stroked Honing Machine- Servo spindle/ball screw stroker, left side mounted electrical enclosure, coolant system, 400 VAC/460 VAC, CE guarding
SH4000R – Power Stroked Honing Machine- Servo spindle/ball screw stroker, right side mounted electrical enclosure, coolant system, 400 VAC/460 VAC, CE guarding

Features + Benefits

Digital-Servo Tool Feed: Patent-pending linear hybrid tool feed and cutting pressure control.
Increased Feed Travel: 20 mm (0.79 in.) of additional feed travel for an increased diameter range for MMT tools.
Electric Foot Pedal: For setup and truing mandrels.
Larger Coolant Tank: 70% larger than earlier models, with a capacity of 208 L (55 gallons).
Ergonomic Work Area: Generous space for operator comfort.
Intuitive Touchscreen: Easy-to-use interface with a large 225 mm (9 in.) display.

Additional Information

The SH-4000 is the result of a four-year development process with input from around the globe. All aspects of the machine have been analyzed for improvement. Engineered to improve operator productivity, the SH-4000 is suited for medium-to-high volume production. Its advanced features and intuitive design make it a standout in the honing industry.

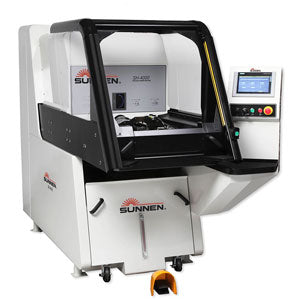

SH-4000 Horizontal Honing Machine

From its designer styling and lack of manual controls to its digital repeatability and touchscreen HMI, Sunnen's SH-4000 builds on the 21-year heritage of the successful EC and ML series machines. The SH-4000 takes honing to the next level of capability.
