Diameter Range (ID):

• CGT: 5.46 - 32 mm (0.214 - 1.260 in.)
• CRT: 53.84 - 63.75 mm (2.120 - 2.150 in.)
• SRT: 39.40 - 76.78 mm (1.500 - 3.090 in.)
• TC: 25.4 - 75 mm (1.0 - 2.95 in.)

Stroke Length: 6 to 392 mm (0.24 - 15.43 in.)

SH6000 – Power stroked Krossgrinding machine, Servo spindle 3700 rpm/ball screw stroker, CGT tooling capable, coolant system w/magnetic separator, rear mounted electrical enclosure, 400 VAC/460 VAC, CE guarding
SH6000HT – Power stroked Krossgrinding machine, High Torque Servo spindle/ball screw stroker, CGT tooling capable, coolant system w/magnetic separator, rear mounted electrical enclosure, 400 VAC/460 VAC, CE guarding
SH6000HTL – Power stroked Krossgrinding machine, High Torque Servo spindle/ball screw stroker, CGT tooling capable, coolant system w/magnetic separator, left side mounted electrical enclosure, 400 VAC/460 VAC, CE guarding
SH6000HTR – Power stroked Krossgrinding machine, High Torque Servo spindle/ball screw stroker, CGT tooling capable, coolant system w/magnetic separator, right side mounted electrical enclosure, 400 VAC/460 VAC, CE guarding
SH6000L – Power stroked Krossgrinding machine, Servo spindle 3700 rpm/ball screw stroker, CGT tooling capable, coolant system w/magnetic separator, left side mounted electrical enclosure, 400 VAC/460 VAC, CE guarding
SH6000R – Power stroked Krossgrinding machine, Servo spindle 3700 rpm/ball screw stroker, CGT tooling capable, coolant system w/magnetic separator, right side mounted electrical enclosure, 400 VAC/460 VAC, CE guarding

• High Precision: Capable of honing to the tightest tolerances in the industry with consistent and accurate bore size control to 0.00025 mm (0.000010 in.).
• Advanced Tooling: Utilizes diamond-plated or metal-bonded abrasive tooling for maximum performance.
• Versatility: Available in both high-speed and high-torque models.
• Quick Changeover: Standard true running spindle with direct CGT tooling connection for quick changeover.
• Electric Foot Pedal: For setup and truing mandrels.
• Larger Coolant Tank: 70% larger than earlier models, with a capacity of 208 L (55 gallons).
• Ergonomic Work Area: Generous space for operator comfort.
• Intuitive Touchscreen: Easy-to-use interface with a large 225 mm (9 in.) display.

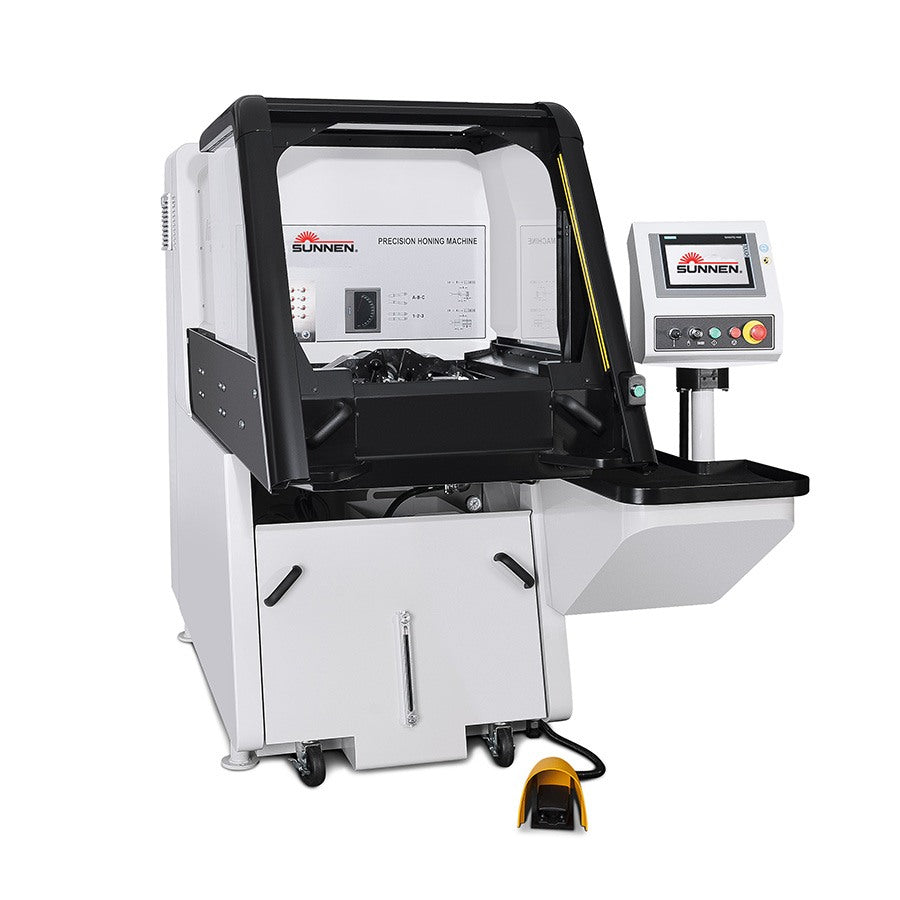

The SH-6000 represents the next generation of high-precision KROSSGRINDING® machines. It is designed for quick changeovers in medium-to-high volume production, offering a higher level of control and new technology throughout. This machine is ideal for achieving consistent and precise results with advanced features that enhance productivity and reliability.
