• Solid Drill Bore Diameter Range (ID): 19-127 mm (0.8-5.0 in) - Drilling (Mild Steel)
• Bore Diameter Range (ID): Up to 7.0 in (Counterboring - Trepanning)
• Outside Diameter Range (OD): 508 mm max (20 in)
• Maximum Part Lengths:
• SHDD-2500 (2-meter): 2000 mm (78.7 in)
• SHDD-4500 (4-meter): 4000 mm (157.5 in)
• SHDD-6500 (6-meter): 6000 mm (236 in)
• Tool Spindle Rotational Speed: 1050 RPM max
• Tool Spindle Linear Speed: 125 mm/sec max (4.92 in/sec)
• Tool Spindle Power: 67 kW (90 hp) @ 480 VAC
• Tool Feed Force: 40 kN (9,000 LBF) max
• Workpiece Spindle Rotational Speed: 285 RPM max
• Workpiece Spindle Power: 37 kW (50 hp) @ 480 VAC
• Maximum Coolant Flow: 760 liters/min (200 gpm)
• Maximum Coolant Pressure: 5.2 MPa (750 psig)
• Voltages Available: 400 VAC 50 Hz 3 phase; 480 VAC 60 Hz 3 phase

SHDD2500 – BTA Deep Hole Drilling Machine- 2 meter (6.6') part capable. Diameter range 19-127 mm (.8"-5") BTA drill, Beckhoff PLC control system, Ball screw driven tool feed. Rack and pinion driven pressure head. Includes base, 67 kW (90 hp) tool spindle, pressure head 19-127 mm (.8"-5") with 3 jaw chuck, counter rotation, 38 kW (50 hp) work piece headstock with 3 jaw chuck, (2) adjustable V block part supports, (1) drill tube vibration dampener (shaft support), (2) adjustable work piece steady rest, head stock, chip exhaust, electrical enclosure with air conditioning, guarding, chip conveyor, rear chip discharge, coolant system w/chiller- 6245 liter (1650 gal) maximum 3785 liter (1000 gallon) operating volume. Options listed below. Export packing must be quoted separately.

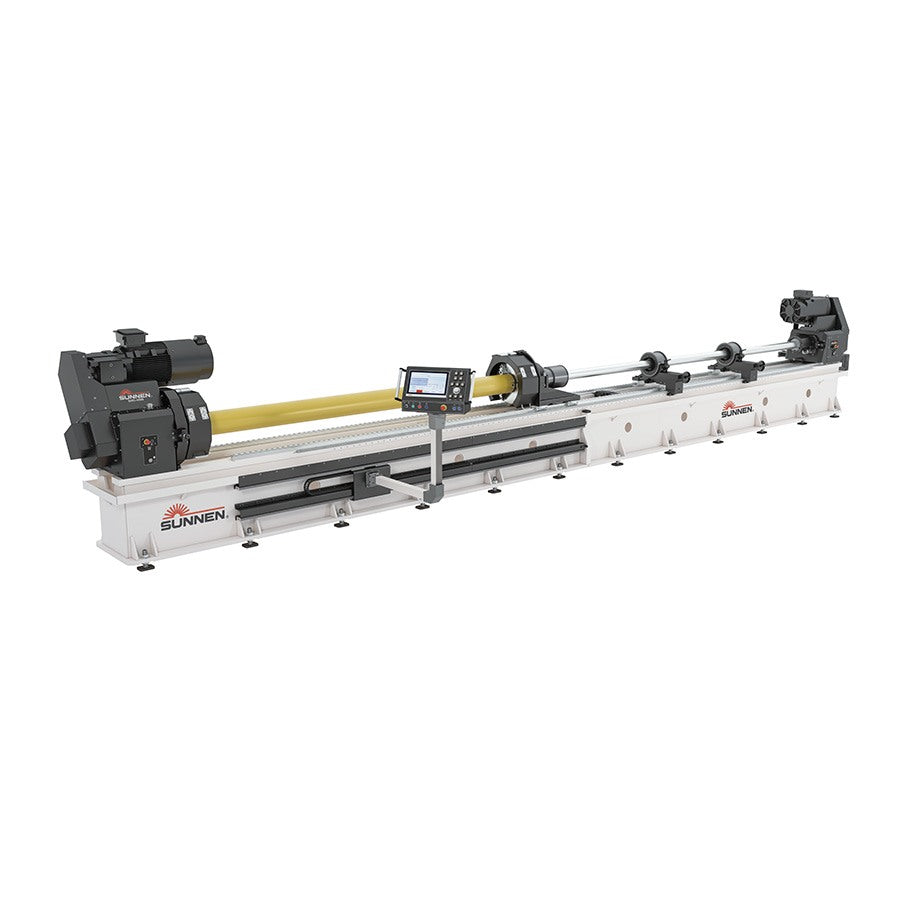

SHDD4500 – BTA Deep Hole Drilling Machine- 4 meter (13.1') part capable. Diameter range 19-127 mm (.8"-5") BTA drill, Beckhoff PLC control system, Ball screw driven tool feed. Rack and pinion driven pressure head. Includes base, 67 kW (90 hp) tool spindle, pressure head 19-127 mm (.8"-5") with 3 jaw chuck, counter rotation, 38 kW (50 hp) work piece headstock with 3 jaw chuck, (2) adjustable V block part supports, (2) drill tube vibration dampener (shaft support), (2) adjustable work piece steady rest, head stock, chip exhaust, electrical enclosure with air conditioning, guarding, chip conveyor, rear chip discharge, coolant system w/chiller - 6245 liter (1650 gal) maximum 3785 liter (1000 gallon) operating volume. Options listed below. Export packing must be quoted separately.
SHDD6500 – BTA Deep Hole Drilling Machine- 6 meter (19.7') part capable. Diameter range 19-127 mm (.8"-5") BTA drill, Beckhoff PLC control system, Ball screw driven tool feed. Rack and pinion driven pressure head. Includes base, 67 kW (90 hp) tool spindle, pressure head 19-127 mm (.8"-5") with 3 jaw chuck, counter rotation, 38 kW (50 hp) work piece headstock with 3 jaw chuck, (2) adjustable V block part supports, (3) drill tube vibration dampener (shaft support), (2) adjustable work piece steady rest, head stock, chip exhaust, electrical enclosure with air conditioning, guarding, chip conveyor, rear chip discharge, coolant system w/chiller. - 6245 liter (1650 gal) maximum 3785 liter (1000 gallon) operating volume. Options listed below. Export packing must be quoted separately.

Optional Features

• Pull boring capability (178 mm / 7" max)
• Lantern chuck for pull boring
• Front chip exhaust with conveyor and chip box
• Large bore workpiece pressure head (178 mm / 7" max)
• 4-jaw chucks for pressure head and workpiece headstock
• Part roller type steady rests (25 mm - 356 mm / 1" - 14" O.D. range)
• Fully enclosed work area guarding
• Camera at chip exit
• Remote process monitoring (OPCUA)
• Part bar code scanning capability
• Drive bar bushings, collets, packing glands, and drive adapters
• Rear chuck for workpiece headstock
• Additional vibration dampener (reduces part length capacity by 310 mm / 12.2")

The SHDD-series is designed for BTA deep-hole drilling but supports other processes like counter boring, pull boring, trepanning, bottom forming, and skiving/roller burnishing.
