• Diameter Range (I.D.) 3 - 60 mm (.118-2.36 in)
• Maximum bore length up to 250 mm (9.84 in)

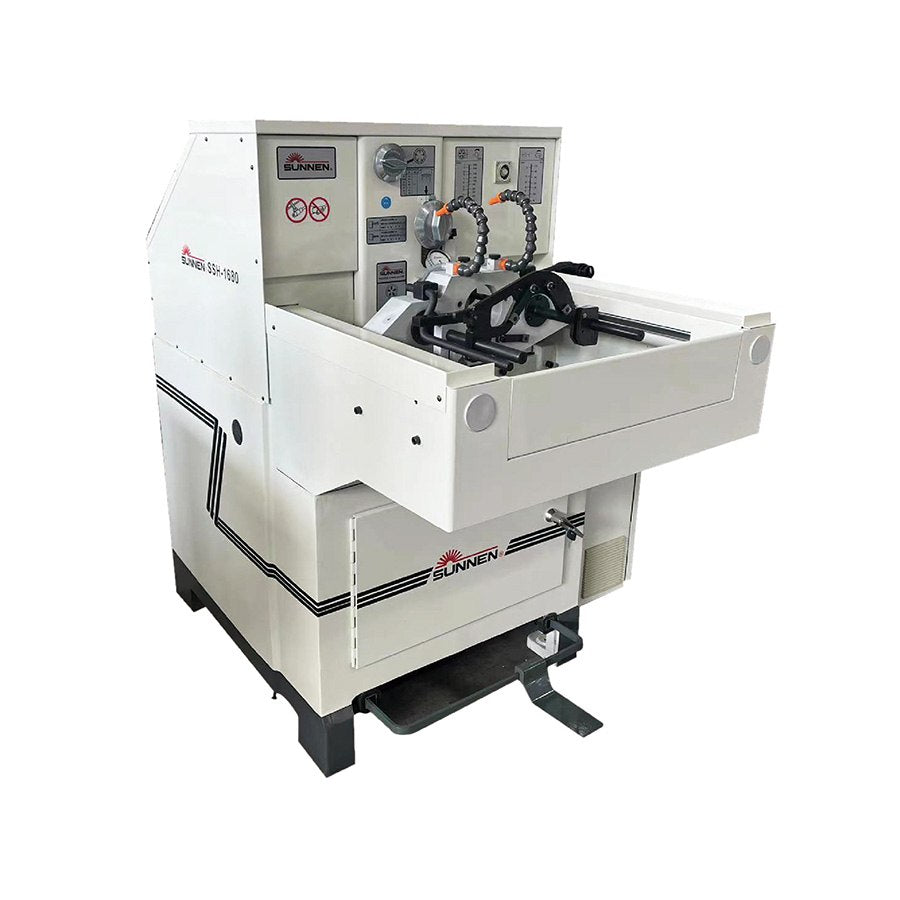

SSH1680D - Entry Level Power Stroker Pedestal Honing Machine, 230 VAC 60 Hz 3 phase (includes coolant system)
SSH1680CD - Entry Level Power Stroker Pedestal Honing Machine, 230 VAC 60 Hz 3 phase- includes coolant system and CE guarding

• Zero Shutoff - Power stroking system can be set up to hone to size and automatically stop
• Power Stroking Standard - Both selectable manual and automatic power stroking is standard
• Solid Construction Throughout - Reinforced structural steel and cast iron provides a solid machining platform
• Moving components are isolated from the base to eliminate vibration
• Rigid stroker carriage and robust linkage-driven design permit more rapid stroking, which shortens cycle times
• Foot Pedal - For ease-of-use and safety, the foot pedal starts and stops the machine

Sunnen Power Stroking assures constant stroke length and stroke rates. Combined with a zero shutoff means better control of bore size, finish and geometry than ever before – at high-production rates.

With the fast stock removal rates of the Sunnen SSH-1680, you can eliminate preliminary reaming, boring or grinding on many jobs and it allows you to rough and finish in one operation.

The SSH-1680 is extremely versatile. It handles workpieces of almost any size or configuration and cuts all kinds of materials fast and clean.
