• Cylinder Diameter Range: 19-203 mm (0.750-8 in) depending on tooling option
• Cylinder Length Range: up to 279 mm (11 in) –Longer length with special tooling
• Spindle Power: 2.25 kW (3 Hp)
• Spindle Speed: 90 – 350 RPM

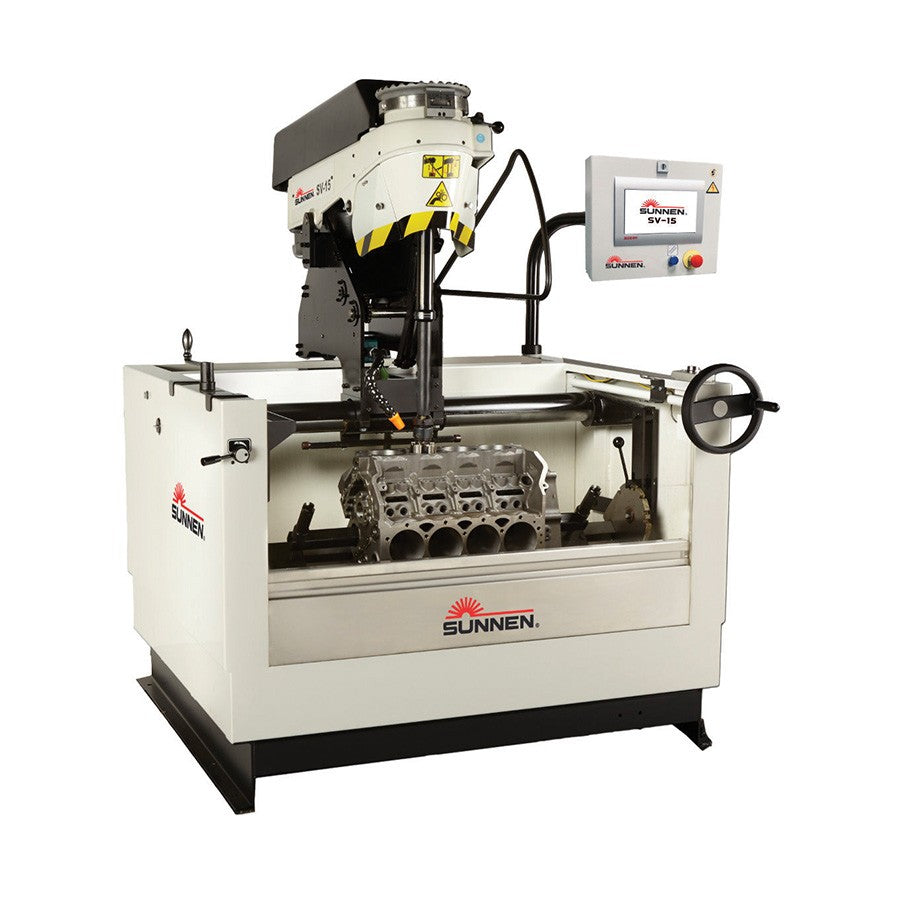

SV15CD – Vertical Honing Machine- Cylinder King, CE Guarding/230 V 60 Hz 3 Phase/Inch Units
SV15CDM – Vertical Honing Machine- Cylinder King, CE Guarding/230 V 60 Hz 3 Phase/Metric Units
SV15CFM – Vertical Honing Machine, Cylinder King, CE Guarding/220 V 50 Hz 3 Phase/Metric Units

• Full bore profile display projects a real-time display allowing you to dwell in the exact position where bore is visually smaller
• New larger 229 mm (9 inch) touch screen with easy-to-use controls
• Tooling options include the new DH-Series diamond honing tool or existing CK/CV tooling
• Precision control - corrects taper and out-of-round, producing surface finish, size, roundness and straightness tolerances to meet OEM specifications
• Save setup capability - up to 100 setups can be stored with USB backup
• Lifetime application service with every machine purchase

With two motors, one for the spindle and one for the stroker, the SV-15 has the capability to run standard Sunnen tools as well as Sunnen's DH-series diamond hone head.

The easy-to-use, yet highly advanced touch screen control includes a full bore profile display. The real time graphical display of the bore cross section allows the operator to dwell in the exact position where the bore is visually smaller. There is no need for guesswork.
