• Ideal for bores 19 mm to 250 mm (.75 in to 10.0 in)
• Easy to use Sunnen2 controls
• Windows®-based PC with industrial color touch screen control panel
• Servo Linear Tool Feed

SV3500 – Heavy Duty Vertical Honing Machine, 300 rpm single fixed column/30 inch stroke/CE/400 V 50 Hz and 460 V 60 Hz (includes guard set)
SV35101 – Heavy Duty Vertical Honing Machine, 300 rpm/Single column/standard stroke/SV2410 Base/X axis column motion/ CE/400/460 V 50/60 Hz with guarding
SV35102 – Heavy Duty Vertical Honing Machine, 600 rpm/Single column/standard stroke/SV2410 Base/X axis column motion/ CE/400/460 V 50/60 Hz with guarding

• Servo motors for stroke and spindle maintain constant crosshatch finish throughout the bore, end to end
• Long-life, low-maintenance stainless steel enclosures for a clean working environment and operator safety
• Auto-dwell feature corrects bore straightness automatically ... great for blind bores
• Setup is fast and easy -- all handled from the operator station
• Pick-and-place automation as well as robotic loading are options that can be integrated with the machine control

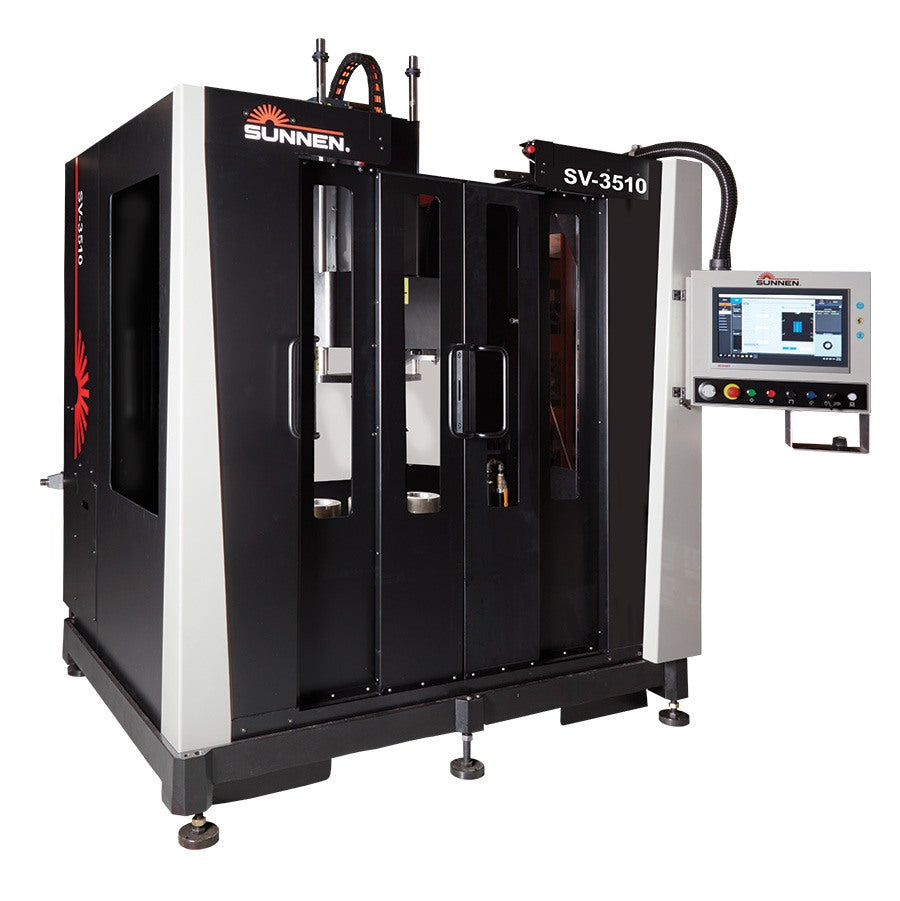

The SV-3500 series are powerful workhorses that features the latest in honing technology - including constant crosshatch capability and a linear tool feed system specifically designed for heavy duty tooling that allows for the most precise and fastest control of feed on the market.
