MANDREL
MANDREL

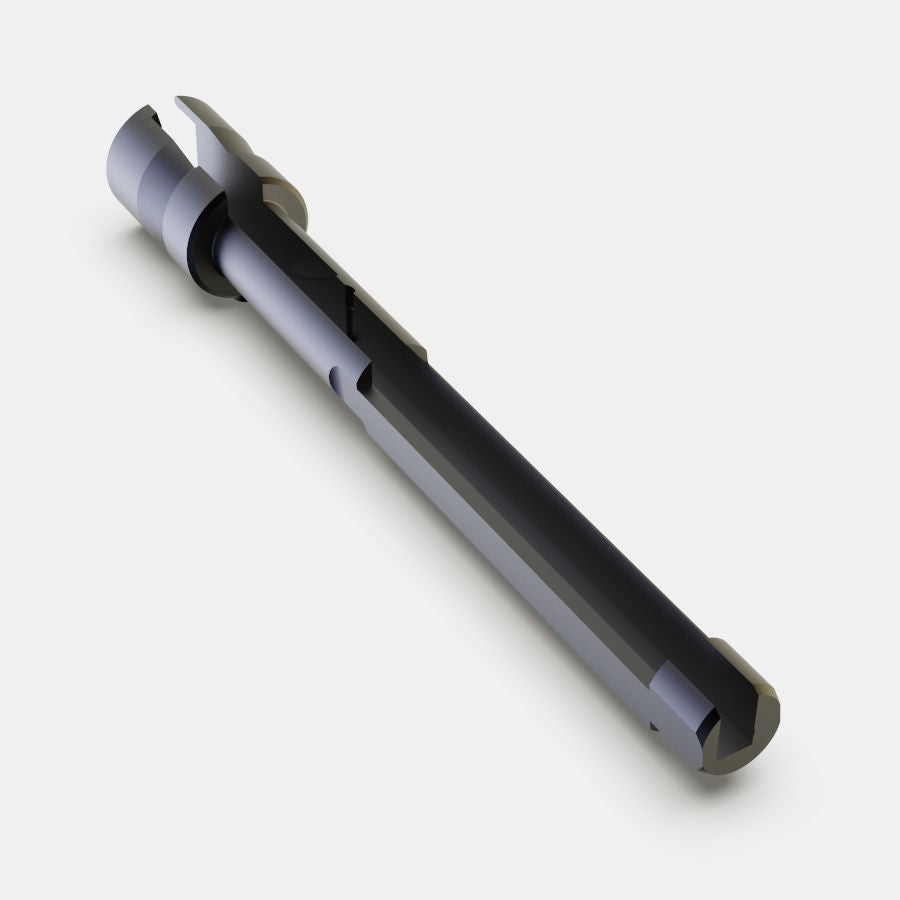

The Sunnen SYY Mandrel is engineered for honing bores with wide slots or keyways, such as piston pin holes in slotted pistons. Featuring extra-wide guide shoes and dual-surface honing stones, it ensures accurate alignment and consistent surface finishes. Constructed from durable steel, the SYY Mandrel delivers long-lasting performance, making it ideal for high-precision applications in industries like automotive and aerospace.
Specs
Specs
| Abr length (in) | 4.875 |
|---|---|
| Abr length (mm) | 123.825 |
| Max diameter (in) | 0.94 |
| Max diameter (mm) | 23.876 |
| Min diameter (in) | 0.927 |
| Min diameter (mm) | 23.5458 |
| Reach length (in) | 8 |
| Reach length (mm) | 203.2 |
| Shank length (in) | 3.125 |
| Shank length (mm) | 79.375 |
| Shoe type | SOFT STEEL |
| Stone size | SYY |
| Sub-family | YY32-M |
| Tool series | Y Series |
