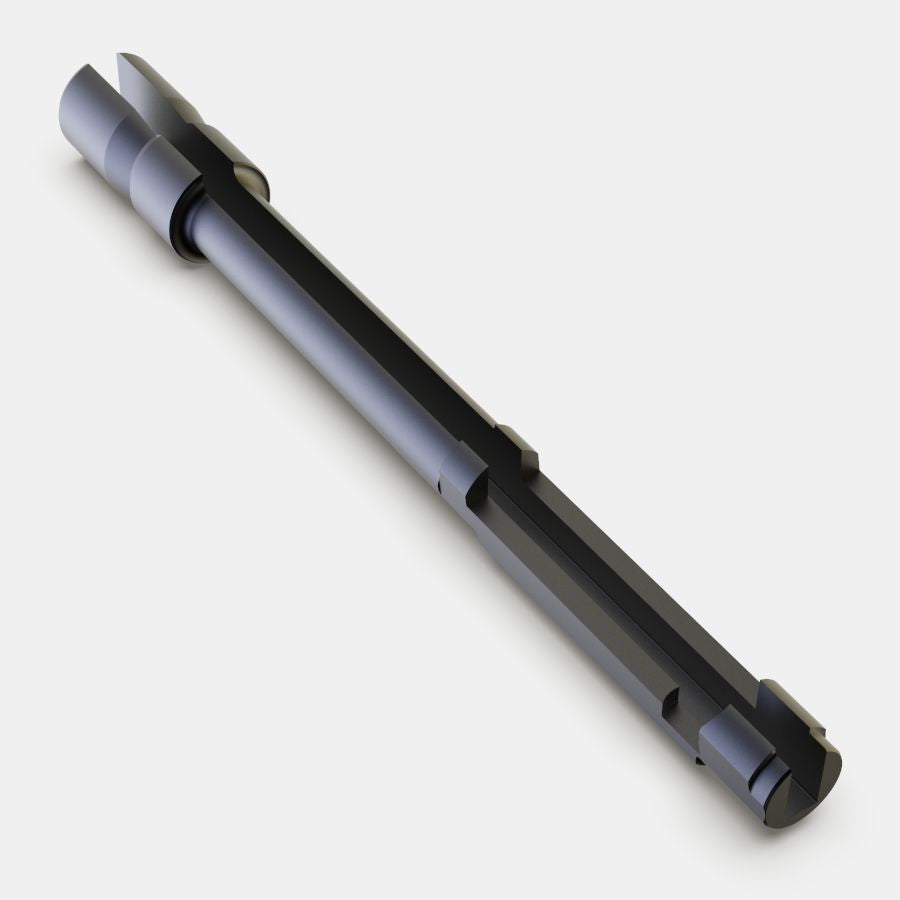

Y16 HARD STEEL KEYWAY MANDREL
Y16 HARD STEEL KEYWAY MANDREL
The Sunnen Y16 is a soft steel keyway mandrel designed to provide accurate, secure workpiece holding for precision honing operations. Engineered for durability and repeatability, the Y16 mandrel ensures smooth alignment and stable performance, even under demanding production conditions. Ideal for use with Sunnen honing machines, it offers a reliable solution for achieving tight tolerances and exceptional surface finishes.
Specs
Specs
| Abr length (in) | 1.625 |
|---|---|
| Abr length (mm) | 41.275 |
| Max diameter (in) | 0.557 |
| Max diameter (mm) | 14.1478 |
| Min diameter (in) | 0.526 |
| Min diameter (mm) | 13.3604 |
| Reach length (in) | 4 |
| Reach length (mm) | 101.6 |
| Shank length (in) | 2.375 |
| Shank length (mm) | 60.325 |
| Shoe type | HARD STEEL |
| Stone size | Y16 |
| Sub-family | Y16-M |
| Tool series | Y Series |
