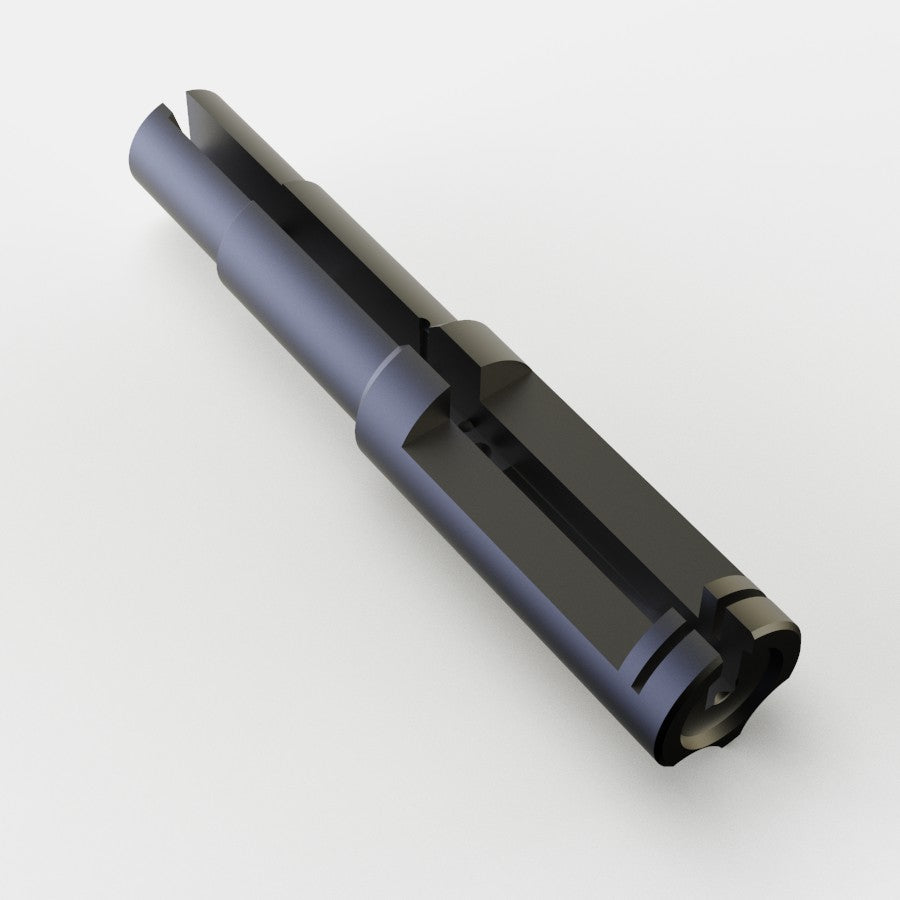

Y32 KEYWAY MANDREL
Y32 KEYWAY MANDREL
Engineered for precision honing in keyways, slots, and other hard-to-reach areas. Designed for use with Sunnen abrasives, it ensures accurate alignment, superior surface finish, and reliable performance in demanding applications. Durable and versatile, the Y32 mandrel is ideal for both production and maintenance honing tasks.
Specs
Specs
| Abr length (in) | 2.375 |
|---|---|
| Abr length (mm) | 60.325 |
| Max diameter (in) | 1.062 |
| Max diameter (mm) | 26.9748 |
| Min diameter (in) | 0.992 |
| Min diameter (mm) | 25.1968 |
| Reach length (in) | 4.813 |
| Reach length (mm) | 122.2502 |
| Shank length (in) | 2.438 |
| Shank length (mm) | 61.9252 |
| Shoe type | REPLACEABLE |
| Stone size | Y32 |
| Sub-family | Y32-M |
| Tool series | Y Series |
Sunnen Service Team
Your Sunnen Technical Specialist will work with you to determine the best solution for your needs – it’s all part of the added value you get with Sunnen. Plus, our worldwide sales and service team provides comprehensive support for the installation and operation of every system we make. Whatever your need, we have the expertise and product range to create the right solution for you and the dedication to support you for the long run.
