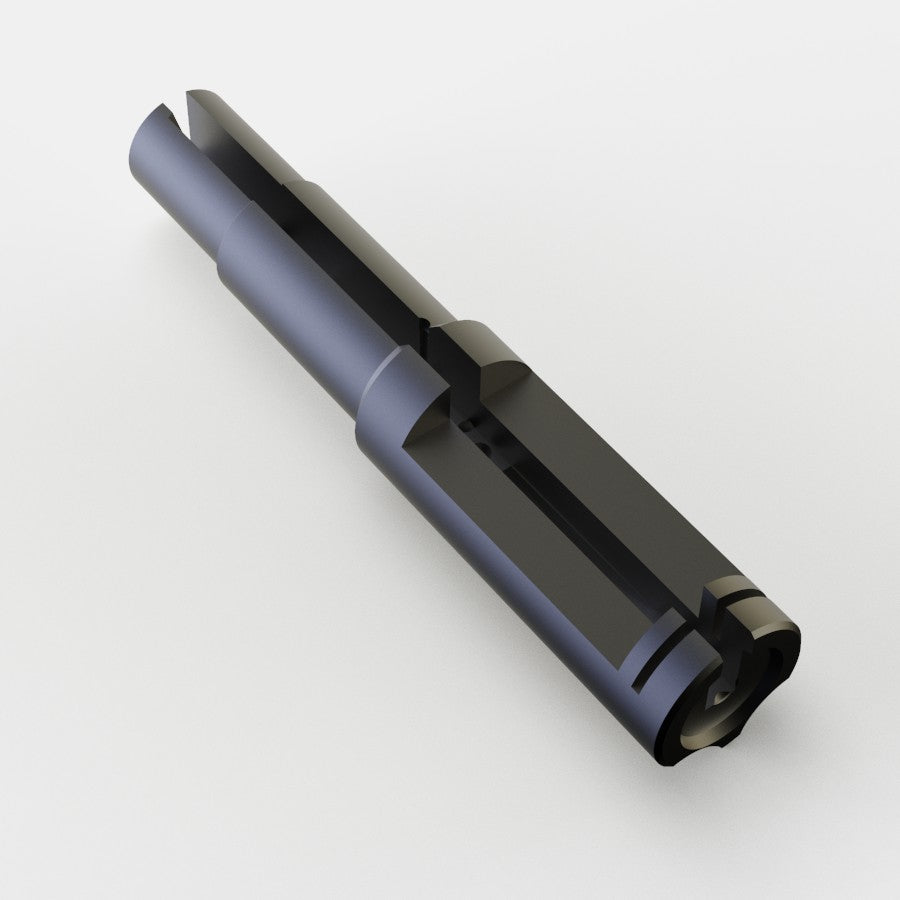

Y44 KEYWAY MANDREL
Y44 KEYWAY MANDREL
Designed for use with Sunnen honing machines, this tooling series ensures a secure fit and consistent performance in bores ranging from 0.4375" to 0.500". Its high-quality construction delivers long-lasting reliability, making it ideal for both production environments and maintenance operations. Whether you are honing cylinders, sleeves, or other critical components, the Y44 Mandrel and Wedge provide the control and results you demand.
Specs
Specs
Abr length (in) | 2.6875 |
---|---|
Abr length (mm) | 68.2625 |
Max diameter (in) | 1.75 |
Max diameter (mm) | 44.45 |
Min diameter (in) | 1.615 |
Min diameter (mm) | 41.021 |
Reach length (in) | 5.6255 |
Reach length (mm) | 142.8877 |
Shank length (in) | 2.938 |
Shank length (mm) | 74.6252 |
Shoe type | REPLACEABLE |
Stone size | Y44 |
Sub-family | Y44-M |
Tool series | Y Series |

Sunnen Service Team
Your Sunnen Technical Specialist will work with you to determine the best solution for your needs – it’s all part of the added value you get with Sunnen. Plus, our worldwide sales and service team provides comprehensive support for the installation and operation of every system we make. Whatever your need, we have the expertise and product range to create the right solution for you and the dedication to support you for the long run.
