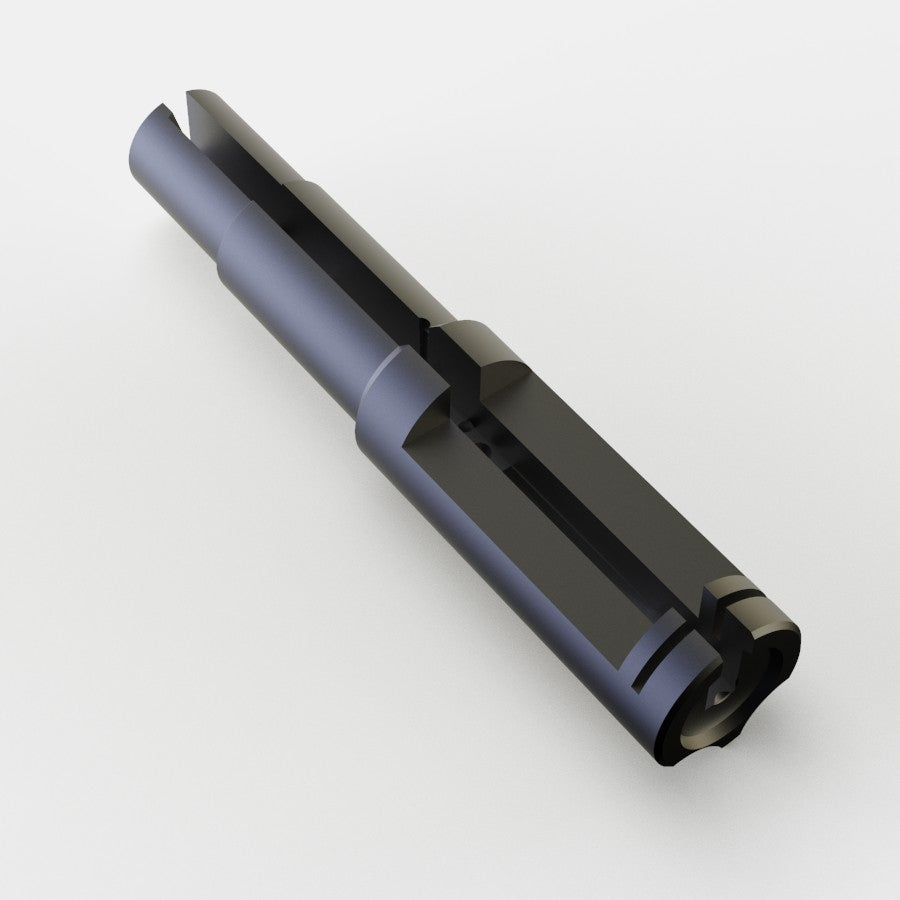

Y72 KEYWAY MANDREL
Y72 KEYWAY MANDREL
High-performance honing solution designed for large bores with keyways, splines, or other interruptions. Built with a durable, replaceable-shoe mandrel and a precision-engineered wedge plate, this system ensures secure abrasive alignment, fast setup, and extended tool life. Ideal for use with Sunnen abrasives, the Y72 assembly delivers exceptional surface finishes, tight tolerances, and reliable performance in demanding applications across the automotive, aerospace, and hydraulic industries.
Specs
Specs
| Abr length (in) | 3.59375 |
|---|---|
| Abr length (mm) | 91.28125 |
| Max diameter (in) | 2.375 |
| Max diameter (mm) | 60.325 |
| Min diameter (in) | 2.24 |
| Min diameter (mm) | 56.896 |
| Reach length (in) | 7.53175 |
| Reach length (mm) | 191.30645 |
| Shank length (in) | 3.938 |
| Shank length (mm) | 100.0252 |
| Shoe type | REPLACEABLE |
| Stone size | Y72 |
| Sub-family | Y72-M |
| Tool series | Y Series |
